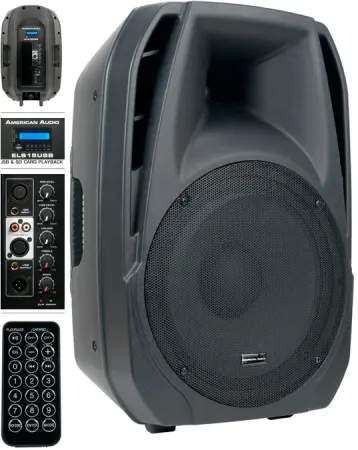

American Audio ELS15 USB (American DJ ELS-15-USB)
The American Audio ELS 15 USB is a lightweight 15-inch Active Speaker. It’s
extremely high efficiency design, low power consumption, and plenty of output
power is ideal for small and mid-size events. The ELS15 USB has a built-in
Bi-amp system: one amp powering the Titanium Driver and one amp for 15" woofer
with 33 oz magnet.
The ELS15 USB is multifunctional. Users can also utilize the Microphone Inputs (XLR
and ¼-inch Jack) and the built-in MP3 player with USB and SD Card inputs. The
speaker also comes with a remote to control the MP3 Playback section on the rear
• 2-way active bi-amplified lightweight speaker with built-in USB & SD input
• MP3 Playback on rear panel with 6-Button Function with blue LCD screen
• Comes with 21-Input remote to control MP3 Playback (p/n ADJ AUD RC)
• 11 Preset EQ (Normal, Rock, Pop, Classic, Jazz, Blues, Hall, Bass, Soft,
Country or Opera)
• High power class A/B bi-amplified system designed to perform at maximum
• Separate High Frequency and Low Frequency provide the power to the speaker as
you music demands it.
• 15-inch woofer 4O 100W RMS
• 1-inch driver 8O 30W RMS
• Flyable & stand mountable
• Treble, bass and volume output control
• Microphone, and Line level controls with master volume.
• Treble, and Bass EQ +/- 12 dB
• XLR & TRS MIC inputs
• XLR & RCA line inputs
• XLR & TRS line outputs
• 4-Way Protection System: Short circuit protection; Thermal protection; On/Off
Mute; LF/HF Limiters
• 9 Fly Points (M8 with a 1.25” thread)
• Active signal limiting system with Clip LED indicator on rear panel
• Time Aligned Electronic Crossover
• Crossover: @ 2.1kHz @ 12dB/Oct.
• Multi-voltage operation: AC 115-230V, 50/60Hz
• Dimensions (LxWxH): 18.5” x 14.75” x 27.75” / 469 x 372 x 700mm
• Weight: 39.5 lbs. / 17kg.
