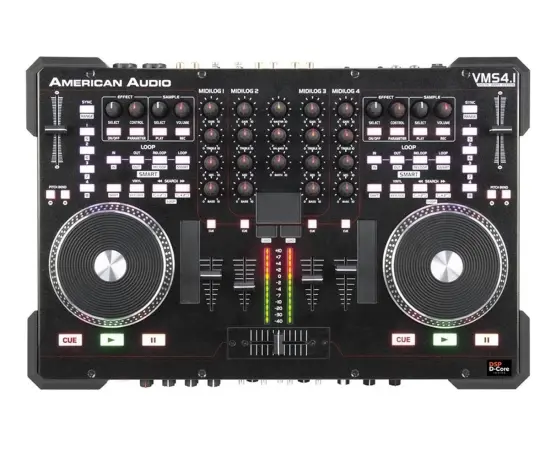

American Audio VMS4.1 (American DJ VMS-4.1)
The American Audio VMS4.1 is a 4-Channel Midi Controller that comes bundled with Virtual DJ LE software. The VMS4.1 features four MIDILOG Channels (compatible with any “MIDI Software”* or Analog Inputs - such as CD Players, Turntables, etc.), two microphone inputs, Balanced XLR outputs, a 4 In/4 Out Sound Card built-in, and comes with American Audio’s exclusive “DSP D-Core” Audio Engine inside.

The VMS4.1 is designed for performance minded DJs looking for a solid, all-in-one Midi Controller to play MP3 tracks from their laptop, plus have the option to add CD Players and turntables to the mix.

Main Features:
• 4x Midilog Channels (Compatible with any "Midi Learn" Software or Analog Inputs - such as CD Players, Turntables, etc.)
• DSP D-Core Inside: Studio Quality Audio Engine + Pro Stage Microphone Circuitry
• 2x Mics with Gain, Treble, Mid & Bass Control
• Crossfader Curve Adjustment
• Balanced XLR Outputs
• Assignable Touch Strips
• Built-in Mouse Pad
• Built-in 4 In/4 Out Soundcard
• Bundled with Virtual DJ LE Software

General Features:
• Midi Controller with 4 USB / Analog selectable MIDILOG™ (Midi & Analog) channels
• All audio control faders, knobs, switches, and buttons smoothed - eliminates popping, wiper noise, and zipper noise
• On/Off soft startup and turnoff
• Gain/treble/mid/bass EQ on all MIDILOGTM channels
• 2 phono/line selectable analog channels
• Two microphone channels with illuminated on/off switches and gain/treble/mid/bass EQs
• On/off cueing on each MIDILOGTM channel
• Split cueing headphones with rotary mix control
• Illuminated rubber knobs for ease of use in dark environments
• Solid 1.6mm thick faceplate for extra durability
• Panel mounted rotary knobs
• Full analog mixer operation if the computer crashes or with external power supply
• Innofader replaceable crossfader compatible (sold separately)
• Crossfader curve control
• Crossfader assign and reverse
• Q-Start crossfader controlled startup for 2 external audio players
• User replaceable channel faders
• Master and Booth outputs with L/R balance
• Balanced Master outputs
• 12 position stereo master output VU meter
• Dimensions (LxWxH): 19”x12.75”x1.5” / 482x325x40mm
• Weight: 13 lbs. / 6 kg.

Midi Features:
• Built-in mouse pad
• Long life MIDI assignable touch strips
• Two 10- bit resolution pitch sliders
• 62 assignable MIDI buttons and switches
• 50 MIDI buttons have LED illuminations, including 18 with dual blue/red LEDs
• 4 assignable rotary encoders
• 34 assignable rotary controllers
• 5 assignable linear fader controllers
• Dual MIDI controls on all buttons and switches
• Dual 2000 point resolution touch sensitive turntable scratch controllers

Audio Features:
• 24-bit 48 kHz analog audio
• 16-bit 44.1kHz USB audio
• 10-bit resolution on all analog fader controls
• THD <0.1%*
• Channel separation >60dB*
• S/N ratio >85dB*
• Analog channel audio latency < 1msec
• Selectable USB modes: 4 in 4 out mode for running software effects on phono/line analog channels or 2 in 8 out mode for running 4 software channels and master recording
• 2 msec response on all buttons
• 4 msec response on all rotary and linear faders
• 1 msec USB latency

* For each audio channel, both line and phono mode

PC System Requirements:**
• Windows XP Sp2 or Windows Vista (32-bit & 64-bit supported)
• PIV 1.2GHz Computer (SSE2 CPU), AMD 64 or Greater
• 1024_768 SVGA Video
• 2 GIG RAM (Vista)
• 40MB Free on the Hard-Drive (Recommended 2000MB)
• DirectX 9.0

Mac System Requirements:
• Mac OS X 10.5 PPC/Intel, 10.5.6 Intel, or 10.6 Intel
• 1.86GHz
• 2GB RAM

** System Requirements may differ due to manufacturer software

ATTENTION VMS4.1 OWNERS
Your VMS4.1 Virtual DJ LE skin may be incorrect. Please click on the following link to obtain the correct skin: https://www.virtualdj.com/users/register.html
