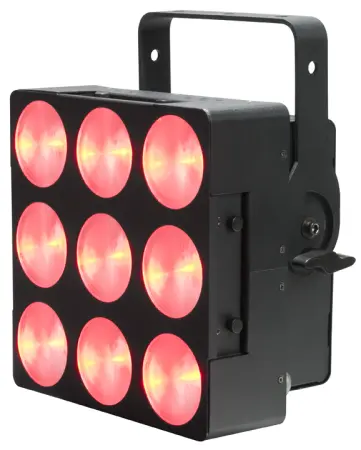

American DJ Dotz Brick 3.3 (ADJ Dots Brick 3.3)



Specifications:

• 3 x 3 COB TRI LED high output Wash/Blinder Matrix panel
• COB Technology (Chip On Board) produces powerful, smooth RGB color mixing with rich palettes of color
• Use as Wash/Matrix or Pixel Mapped for a stunning visual effect
• Great for Stage Lighting, Bands or Night Clubs
• 4x Operational modes: Auto Run, Sound Active, Built-In Programs, and DMX Controlled Mode
• 5 DMX channel modes: 3, 6, 8, 27 or 32 channel
• Individual Pixel controllable in 27 or 32 channel DMX mode
• Pixel Flip options changes pixel orientation
• RDM Compliant (Remote Device Management)
• Built-In preset colors and programs
• Flicker Free operation (No flickering on camera)
• LED pulse and strobe effect
• Electronic Dimming: 0 - 100%
• 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
• 25-degree beam angle
• 3-pin XLR chassis mount connectors for DMX linking
• IEC AC IN/OUT to daisy chain power (up to 7 Dotz Brick 3.3’s @ 120V and 14 Dotz Brick 3.3’s @ 230V)
• Power Draw: 116W total (All LED's @ Full)
• 4-button DMX LCD display
• Single yoke allows fixture to be mounted
• Fan Cooled
• Light Source: 3 x 3 9-Watt COB TRI LEDs (RGB: 3 in 1)
• Lux @ 3M: 471 Lux
• Auto sensing power supply: AC 100V/60Hz - 240V/50Hz
• Dimensions (LxWxH): 10.25” x 6.75” x 12”/ 259 x 169 x 300mm
• Weight: 11 lbs. / 4.8 kgs.
