Audio-Technica ATW-1312L System 10 PRO
- DISCONTINUED

product discontinued

This product has been discontinued by the manufacturer. Please contact us to find a replacement.

*Discontinued

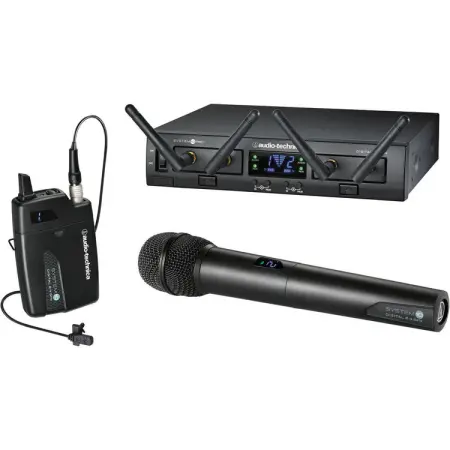

Audio-Technica ATW-1312L System 10 PRO Rack-Mount Digital Lavalier/Handheld Combo System (2.4 GHz)

Digital 24-bit/48 kHz Operation
2.4 GHz ISM Band
Automatic Frequency Selection
XLR and 1/4" Outputs
Channel Selection, Sync, and Setup
Three Levels of Diversity Assurance
Easy-To-Read Display
Can be Linked to Ten Receiver Units
Receiver Units Can Be Mounted Remotely
Ground-Lift Switch

The System 10 PRO ATW-1312L from Audio-Technica is a digital 24-bit/48 kHz wireless microphone system that operates on the 2.4 GHz ISM band and is used to capture audio for applications such as live stage, theater, DJ setups, and more.

The System 10 PRO features a half-rack chassis that allows you to mount one or two receiver units, however the receiver units can be released from the chassis and mounted remotely (up to 328' away) via Ethernet cable. Up to five chassis or 10 receiver units can be linked using a RJ12 cable, creating a multi-channel system with up to 10 channels.

In addition, other features include an easy-to-read display on each transmitter and receiver unit for quick setup, clear and natural-quality sound, and three levels of diversity, namely frequency, time, and space. Frequency Diversity sends the signal on two allocated frequencies, Time Diversity sends the signal in multiple time slots, and Space Diversity uses two antennas on each transmitter and receiver unit, thus to help maximize signal integrity.

The System 10 PRO Rack-Mount system includes one ATW-RC13 receiver chassis with rack-mount adapters, two ATW-RU13 receiver units with corresponding AT8690 receiver unit mounting brackets, one RJ12 cable, one AC adapter, one ATW-T1001 bodypack transmitter, one MT830cW lavalier microphone, and one ATW-T1002 handheld dynamic microphone.

This Bundle Includes:

System 10 PRO ATW-RC13 Rack-Mount Digital Wireless Receiver (2.4 GHz)
2 x ATW-RU13 System 10 PRO Receiver Unit (2.4 GHz)
ATW-T1001 System 10 Digital UniPak Transmitter
ATW-T1002 System 10 Handheld Unidirectional Microphone/Transmitter
MT830CW Omni-Directional Lavalier Condenser Microphone

OVERALL SYSTEM SPECIFICATIONS
Operating Frequencies 2.4 GHz ISM band
Dynamic Range >109 dB (A-weighted), typical
Total Harmonic Distortion <0.05% typical
Operating Range 30 m (100') typical
Open range environment with no interfering signals
Operating Temperature Range 0° C to +40° C (32° F to 104° F)
Battery performance may be reduced at very low temperatures
Frequency Response 20 Hz to 20 kHz
Depending on microphone type
RECEIVER SPECIFICATIONS
Receiving System Diversity (frequency/time/space)
Maximum Output Level XLR, balanced: 0 dBV
1/4" (6.3 mm), unbalanced: +6 dBV
Power Supply 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
Dimensions 190.0 mm (7.48") W x 46.2 mm (1.82") H x 128.5 mm (5.06") D
Net Weight 290 grams (10.2 oz)
Accessory Included Power supply
BODY-PACK TRANSMITTER SPECIFICATIONS
RF Power Output 10 mW
Spurious Emissions Following federal and national regulations
Input Connections Four-pin Locking Connector
Pin 1: GND, Pin 2: INST INPUT,
Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
Batteries Two 1.5V AA
not included
Battery Life >7 hours (alkaline)
Depending on battery type and use pattern
Dimensions 70.2 mm (2.76") W x 107.0 mm (4.21") H x 24.9 mm (0.98") D
Net Weight 100 grams (3.5 oz)
without batteries
HANDHELD TRANSMITTER SPECIFICATIONS
RF Power Output 10 mW
Spurious Emissions Following federal and national regulations
Batteries Two 1.5V AA
not included
Battery Life >7 hours (alkaline)
Depending on battery type and use pattern
Dimensions 254.8 mm (10.03") long,
50.0 mm (1.97") diameter
Net Weight 280 grams (9.9 oz)
without batteries
Accessory Included AT8456a Quiet-Flex™ stand clamp
