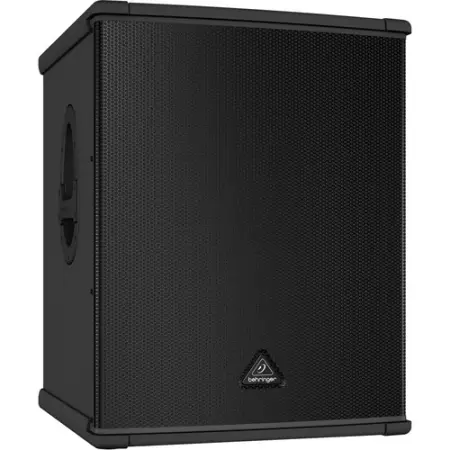

EUROLIVE B1800XP
High-Performance Active 3000-Watt PA Subwoofer with 18" TURBOSOUND Speaker and Built-In Stereo Crossover

Features:

High-performance 3000-Watt powered subwoofer for PA applications
World-famous, British engineered 18" TURBOSOUND speaker
Extremely high sound pressure level and incredibly accurate bass
Precise reproduction of ultra-low frequencies for "bulletproof" punch and impact
State-of-the-art 3000-Watt Class-D amplifier with comprehensive over-excursion, thermal, RMS and clip limit protection
Built-in active stereo crossover provides high-pass filtered outputs for full-range loudspeakers
Tunable and switchable Bass Boost plus Phase switch for ultimate low-frequency performance
Variable High Cut control for perfect sound alignment
Subwoofer Level control to adjust the balance between subwoofer and the full-range speakers
Power, Signal and Clip LEDs for perfect monitoring
Intelligent limiter for maximum sound performance and woofer protection
Internal switch-mode power supply for noise-free audio, superior transient response and very low power consumption
Pole socket for mounting with commercial spacer poles
Ergonomically shaped handles for easy transport
Rugged steel grill for optimal speaker protection
3-Year Warranty Program*
Designed and engineered in Germany

EUROLIVE B1800XP
Our Eurolive B1800XP 3,000-Watt active subwoofer provides the ultimate in low-frequency reproduction, and the built-in stereo crossover makes it ideally suited for use with any of our active 2-way loudspeakers. Packed with a powerful 3,000-Watt Class-D amplifier, a TURBOSOUND 18" long-excursion Low-Frequency (LF) transducer and an incredible array of professional features, the B1800XP produces extreme levels of low-end punch, with the definition and clarity typically reserved for much larger systems!

Class-D - Massive Power, Perfect Sound
Thanks to our revolutionary Class-D amplifier technology, we are able to provide you with enormous power and incredible sonic performance in an easy-to-use, ultra-portable and lightweight package. Class-D amplification makes all the difference, offering the ultimate in energy efficiency and eliminating the need for heavy power supplies and massive heat sinks. This amazing technology makes it possible to design and build extremely powerful products that are significantly lighter in weight than their traditional counterparts, while using less energy and protecting the environment.

TURBOSOUND - The Sound Difference
A world-leading British designer and manufacturer of professional loudspeaker systems, TURBOSOUND has been building cutting-edge speakers for more than 30 years, and won the venerable Queen’s Award for Innovation numerous times for their highly acclaimed loudspeaker designs. You will find TURBOSOUND’s distinguished products not only touring with the best-known international artists, but also in countless major venues worldwide.

Specifications:

Maximum Output Power
3000 W

Amplifier Type
Class-D

Audio Inputs
Input A/B: XLR, servo-balanced

Sensitivity: +4 dBu @ 0 dB (center position) for full rated power
Max Input: +22 dBu, balanced, ≤1% THD-N

Input Impedance: 12 kOhms unbalanced, 24 kOhms balanced

Audio Outputs
Thru A/B: XLR, servo-balanced
Output A/B: XLR, servo-balanced
High-Pass Filter: 100 Hz, Butterworth, 18 dB slope

Level Control -∞ to +6 dB

Boost Frequency 40 to 90 Hz, +10 dB

Gain Boost
Switchable

High Cut Filter
70 to 150 Hz, Butterworth, 24 dB slope

Phase
0° or 180° phase reverse switch

Frequency Range
32 to 200 Hz (-10 dB)

Frequency Response
40 to 150 Hz (±3 dB)

Signal to Noise Ratio
>100 dB (A-weighted, 20 Hz to 20 kHz)

SPL Level
129 dB at 1 m

Woofer
18"
Signal Indicator
Signal: Green
Limit: Red
Power: Amber

Protection
Amplifier Protection: Full short circuit, thermal protection

Load protection: Turn-on/off muting, DC

Power
Power Supply: 100-120 VAC, 50/60 Hz, (T 15 A H 250 V)

Power Consumption @ 1/8 rated power: 180 W
Mains: Standard IEC receptacle

Dimensions (H x W x D) 27.7 x 21.6 x 21.8" / 70.4 x 54.9 x 55.4 cm
Weight 98.9 lb / 44.9 kg

Behringer B 1800xp (Behringer B-1800XP sub)
