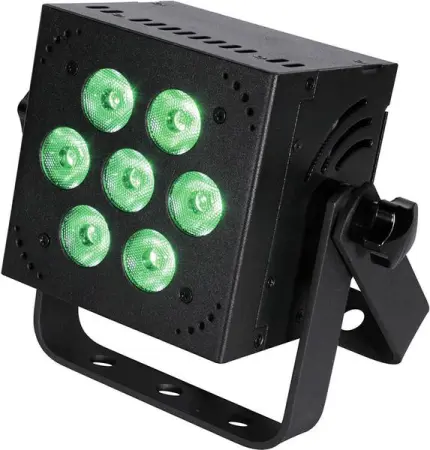

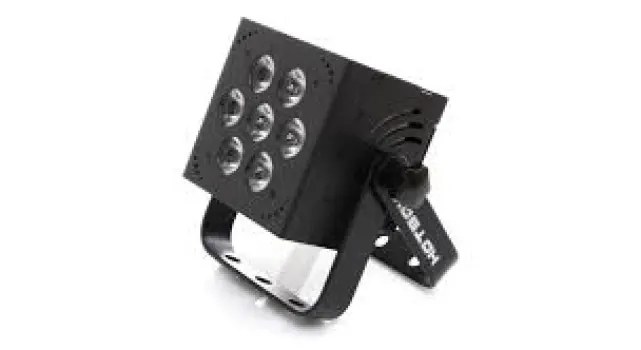

Blizzard Lighting Hot Box EXA 6-in-1 RGBAW+UV
(Blizzard HotBox EXA RGBAWV)

5-in-1 LED's are cool... but where do you go for that little EXTRA push over the cliff?

Exactly! Welcome to the future of 6-in-1 RGBAW+UV LED's!

You've heard all the great things about RGBAW 5-in-1 LED's. But say you're mixing with all the colors in your 5-in-1 LED par cans, and you want to easily achieve just a bit of more of an eerie hue, or maybe your situation would look incredibly cool with a sudden shot of full on ultraviolet light, alternating with a few brilliant blasts of cool white strobe? Can you get that with your fixtures? Sorry, no you can't! You need the unique abilities of 6-in-1 RGBAW+UV LED's!

With this new version of the HotBox™, you'll get the advantage of 7x 15-watt RGBAW+UV 6-in-1 LEDs, advanced electronics, a rugged cast aluminum housing with attachable light diffuser plate, and the flexibility of secure mounting with dual hanging brackets... it's sure to be a BIG hit in your lighting rig!

The HotBox™ EXA features 3/6/8/10 or 11 DMX channel modes, which means it works great with any type of controller, including popular 3-channel controllers. You’ll have full control of all that it has to offer such as RGBAW+UV color mixing, 35 built-in programs, ultra smooth flicker-free 32-bit dimming (5 user-selectable dimming curves), and even easy HSV color mixing ability in 3-channel mode.

The super-easy to use built-in 4-button LED control panel also allows total control over the fixture including master/slave settings, sound active mode, built-in programs, auto mode, custom RGBAW+UV color mixing, and user adjustable fade/strobe effects for an unbelievable light show!

It also comes equipped with industry standard powerCON® compatible power input/output connections & 3-pin DMX connections which are all strategically placed on the back of the unit in a way that allows you to use the HotBox™ EXA in ANY position, including flat on the floor. This makes the HotBox™ EXA a perfect solution for any of your uplighting and/or truss warming needs!

  •   Color mixing via 7x 15W (6 x 2.5w) Red/Green/Blue/Amber/White/UV 6-in-1 LEDs
  •   395-400nM ultraviolet light output
  •   5 user-selectable 32-bit dimming curves
  •   Variable electronic dimming & strobe
  •   Built-in color & chase macros via DMX
  •   Built-in automated programs via master/slave
  •   Built-in sound active programs
  •   RGBAW+UV color mixing ability in standalone mode
  •   Rugged and well-built (It hits the gym regularly)
  •   Super-quiet variable-speed internal fan cooling
  •   Dual mounting brackets for positioning flexibility
  •   Flicker-free constant-current 400hz LED driver
  •   3-pin male input and 3-pin female output
  •   PowerCon™ compatible AC power In/Out connectors

Power
  •   Operating Voltage: 100-264VAC, 47-63 Hertz
  •   Fuse: 2A 250V
  •   Power Consumption: 58W

Light Source
  •   LED: 7x 15W 6-in-1 LEDs 100,000 hours.

Optical
  •   Beam Angle: 25 degree optics standard, 26 degree beam, 30 degree field
  •   Easy install light diffuser plate with 4 thumb screws included.

Thermal
  •   Max. Operating Temp.: 104 degrees F (40 degrees C) ambient

Control
  •   Protocol: USITT DMX-512
  •   DMX Channels: 3/6/8/10/11
  •   Input: 3-pin XLR Male
  •   Output: 3-pin XLR Female
  •   HSV (3-Ch), RGBAW+UV (6-Ch), RGBAW+UV/Dim/Strobe (8-Ch), Extended (10-Ch), & Extended w/32-bit Dimmer (11-Ch) DMX Profiles
  •   Operating Modes: Standalone, Master/Slave, Sound Active, Color Preset

Weight & Dimensions
  •   Length: 4 inches (102 mm)
  •   Width: 5 inches (127 mm)
  •   Height: 5 inches (127 mm)
  •   Weight: 3.5 lbs (1.6 kg)

Warranty
  •   2-year limited warranty, does not cover malfunction caused by damage to LED’s.

Lux / Meter RGBAW+UV Red Green Blue Amber UV White 1M 11,250 2,110 2,510 2,600 1,180 600 3,410 2M 2,920 550 680 690 320 180 890

Blizzard Hot box hex (Blizzard Lighting Hot-Box exa)
