VHF Wireless Combo Handheld and Bodypack Microphone System

Features:

Two discrete channels of wireless in one receiver chassis.
RF and AF indicator lights
Advanced dipole antenna technology
Three output options: balanced XLR discrete, balanced XLR mixed, and ¼"
On/off and mute function
Battery life of >10hrs, with battery life indicator.

Specifications:

Transmitter
Frequency Response: 50 Hz to 18 kHz
Dynamic Range: >100 dBA
Maximum Input Level: Microphone: -6 dBV
Instrument: +10 dBV
RF Transmission: Output: 10 mW
Modulation: FM
Power Requirements: 9 V alkaline or rechargeable battery
Battery Life: >10 hours (alkaline)

Handheld Transmitter
Operating Principle: Moving coil dynamic
Polar Pattern: Cardioid
Frequency Response: 80 Hz to 13 kHz
Maximum SPL: 135 dB
Dynamic Range: >100 dBA
RF Transmission: Output: 10 mW
Modulation: FM
Power Requirements: 9 V alkaline or rechargeable battery
Battery Life: >10 hours (alkaline)

Receiver
Maximum Output Level: -6 dBV
Output Impedance: 600 Î
Frequency Response: 50 Hz to 18 kHz
Frequency Band: VHF
RF Sensitivity: -105 dBm
Output Connectors: 2x XLRM
1x 1/4" (6.3 mm)

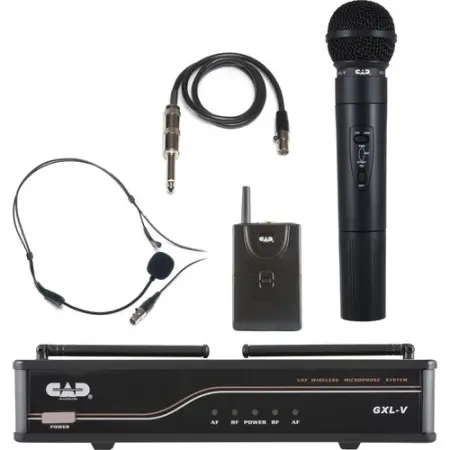

CAD Audio GXLVHB (CAD wireless mic system)
