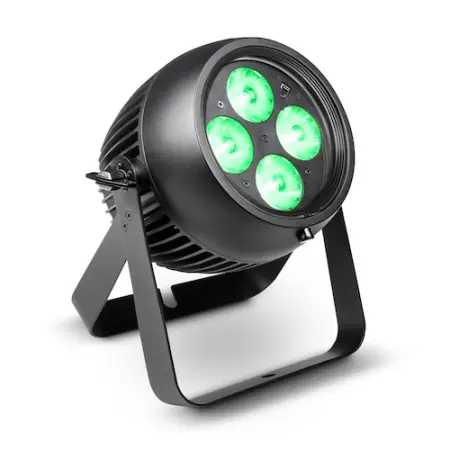

ZENIT P 130
Professional Outdoor PAR Can IP65 with innovative light shaping diffusors
The Cameo Zenit® P130 is an IP65 rated outdoor PAR can with a sharp, tightly focussed beam angle of 8°. For an additional choice of 25° or 45° angles, it comes with two ultra-efficient light shaping diffusers which are specially designed to maintain the fixture's powerful illuminance. The Zenit® P130 is equipped with four 32W RGBW Osram OSTAR LEDs for brilliant, uniform Colours while 16-bit technology enables high-resolution Colour mixing and dimming. With a 3,600 Hz refresh rate and flicker- free operation the advanced Zenit® P130 is the perfect choice for motion picture and TV applications. Highly effective convection cooling ensures totally noise-free operation.

Truly professional, the Zenit P130® is RDM-compatible and includes 7 modes of DMX control, exciting automated programs as well as master, slave and standalone capability. It features Colour temperature and individual LED Colour correction, a high- speed strobe, 4 selectable dimming curves and adjustable halogen lamp-like dimming response. A security lock prevents unauthorized menu access.

To enable easy daisy-chaining, the heavy-duty die-cast aluminium housing provides innovative locking 5-pin DMX and AC power inputs and outputs. A modern OLED display with 4 touch buttons allows easy, intuitive configuration.

Features:

Professional IP65 outdoor PAR can with 4 x 32 W RGBW Osram OSTAR LEDs and 8° beam angle
Includes 2 innovative light shaping diffusers for beam angles of 25° or 45° while maintaining transmission efficiency
RDM capability
16-bit technology for high-resolution Colours and dimming
Flicker free, ideal for motion picture and TV applications
Colour temperature and individual LED Colour correction
4 ultra smooth dimming curves and adjustable halogen lamp-like dimming response
7 modes of DMX control plus master, slave and standalone capability
OLED display with 4 touch buttons for easy configuration
Security lock against unauthorized menu access
Convection cooling for noise-free performance

Specifications:

Product number: CLZP130LSD
Product type: LED PAR Lighting
Type: Outdoor
Colour spectrum: RGBW
Number of LEDs: 4
LED type: 32W Osram OSTAR LED (approx.50.000 operating hours)
Refresh rate: 3600Hz
Dispersion: 14° Field°, 8° beam°
DMX input: 5-pin IP65
DMX output: 5-pin IP65
DMX mode: 4-channel, 8-1 Channel, 8-2 Channel, 10-channel, 2-channel, 15-channel, 3-channel
DMX Functions: reset, colour fade, RGBW, colour jump, strobe, colour macro, RGBW Fine, Dimmer, CTC (Colour Temperature Correction), Dimmer Response, Dimmer Fine, Dimmer Curve
Standalone modes: strobe, colour fade, Display Lock, Dimmer Curve, White Balance adjustable, colour jump, colour macro, Dimmer Response, master / slave mode, static colour, auto programs
Controls: mode, Value Up, Value Down, Enter
Indicators: OLED Display
Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
Power consumption: 155W
Power connector: IP65
Housing material: die-cast aluminium
Cabinet colour: Black
Protection class IP65
Cooling: Convection
Illuminance: 92600lx @ 1m
Luminous flux: 2398lm
Operating Temperature: - 15 - 45°C

Dimensions without mounting bracket
Width: 186.6mm
Height: 186.6mm
Length: 159mm
Weight: 4.8kg
Features: IR Remote

Cameo Zenit P130 (Cameo Lighting CL-ZP130)
