Chauvet DJ Constellation DMX800 DISCONTINUED

This product has been discontinued by the manufacturer. Please contact us to find a replacement.
User Reviews

Please log-in to write your review

read all reviews
Product Description

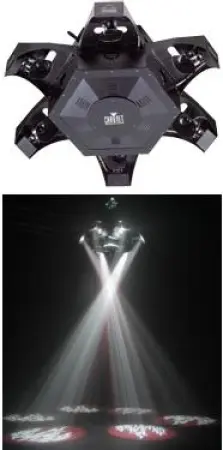

Chauvet Constellation (Chauvet DMX-800)

The Chauvet Constellation DMX-800 is a stunning DMX-controllable centerpiece with six scanning heads that fill dance floors with sweeping beams and gobos. An HMI 575W lamp powers the unit. The six scanning heads cover up to a 73-degree beam spread. Each head has a gobo wheel fitted with 7 dichroic glass gobos plus an open slot. The entire unit can dim, strobe or be blacked out using the shutter. And, conveniently, it can also be reset remotely. The DMX-800 Constellation runs in either a 13 or 19-channel DMX configuration but also performs well in stand-alone or sound-activated mode.

13 or 19-channel DMX-512 centerpiece
Operating modes
13-channel: control pan and tilt in pairs
19-channel: control pan and tilt seperately for each head
Pan: 180° / tilt: 90° (each mirror)
Pan/tilt control of each mirror
Variable strobe/shutter/dimmer
6 rotating gobo wheels
7 glass, rotating gobos + open on each wheel
Rotating gobo wheel spin effect for each wheel
Remote fixture reset, lamp on/off and vector control channel
Built-in automated programs via master/slave or DMX
Built-in sound activated programs via master/slave or DMX
Flight case included
Centrally-located lamp holder for easy lamp changes

Beam angle: 12° (each beam)
73° (entire unit)
Lux: 105,276 @ 1m
Light Source: HMI575/GS 575W 6000°K 1,000hrs
Power and current: 120V,60Hz: 637W, 6.4A operating, 10.2A inrush PF 0.85
AC Power: Switchable 110V/230V 50/60Hz
Weight: 99.2lbs (45kgs)
Size: 33.5in x 31.5in x 11.8in
850mm x 800mm x 300mm

show full description
