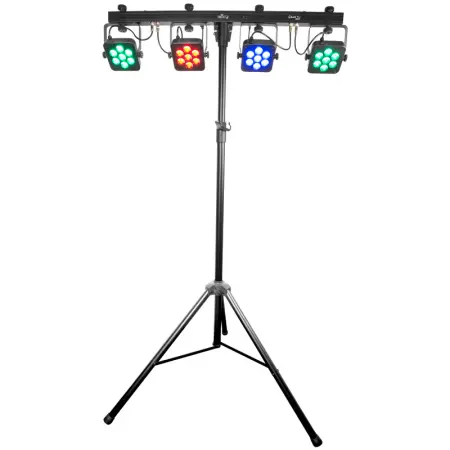

4BAR™ Tri USB is a complete wash lighting solution fitted with high-intensity tri-color (RGB) LEDs that can be controlled wirelessly via the included footswitch or the optional IRC-6 controller (sold separately). It also features D-Fi™ USB compatibility for wireless master/slave or DMX control. A convenient tripod stand and carrying bag are included for quick and easy setup and tear down.


Features:

• Complete wash lighting solution fitted with high-intensity, tri-color (RGB) LEDs

• Out of the box wireless control with included footswitch or optional IRC-6 controller

• Easily set up and tear down in minutes with the included tripod stand and carrying bags

• Create large, coordinated light shows with other 4BAR™ fixtures in Master/Slave mode

• D-Fi™ USB compatibility for wireless Master/Slave or DMX control

• Create the ultimate light show by mounting up to 4 additional
fixtures to the top of the 4BAR™ Tri USB

• Achieve total room or stage coverage with 4 individually adjustable heads

• Nearly eliminate multi-colored shadows with high-power, tri-color (RGB) LEDs

• Increase mounting options by safely mounting to truss using built-in bolts

• Save time running cables and extension cords by power linking multiple units

• Sound-activated programs dance to the beat of the music

Specifications:

• DMX Channels: 3 or 15
• DMX Connectors: 3-pin XLR
• Light Source: 28 LEDs (tri-color RGB) 3 W (1 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 25 Hz
• PWM Frequency: 1,200 Hz
• Stand Height: 7.4 ft (2.25 m)
• Beam Angle: 18°
• Field Angle: 31°
• Illuminance: 2,330 lux @ 2 m (per pod)
• Power Linking: 8 units @ 120 V; 14 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 69 W, 1 A @ 120 V, 60 Hz
• Power and Current: 66 W, 0.5 A @ 230 V, 50 Hz
• Fits Tripod Sizes: 1.34 to 1.57 in (35 to 40 mm)
• Weight: 20.6 lb (10.8 kg)
• Weight (Controller): 0.8 lb (1.8 kg)
• Size: 41.3 x 2 x 10.6 in (1,050 x 50 x 270 mm)
• Size (Controller): 12.4 x 5.2 x 1.5 in (315 x 132 x 38 mm)
• Optional Controllers: IRC-6, D-Fi™ USB
• Approvals: CE

Chauvet 4Bar Tri Usb (Chauvet DJ 4-bar Tri Usb)
