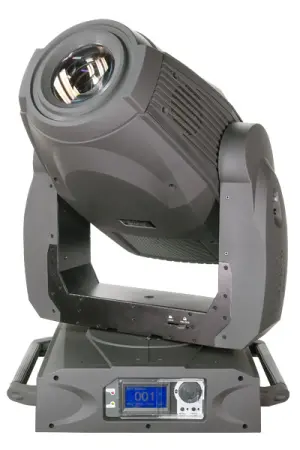

Chauvet DJ Legend 1200E Spot

Chauvet Legend 1200E Spot (Chauvet LEGEND 1200 E SPOT)

The Chauvet Legend 1200E Spot features a state-of-the-art 1,200-watt FastFit lamp and CMY color mixing. The unit includes two gobo wheels, both fitted with six glass slot-n-lock gobos. It has an electronic ballast and power supply.

23 or 31-channel fully electronic 1,200-watt moving yoke spot
Pan: 540°
Tilt: 270°
Color wheel: 7 colors + white (red, blue, pink, green, magenta, orange, and UV)
Split/linear colors
Rainbow color spin at variable speed
Gobo wheel 1: Indexed, rotating gobo wheel with gobo shake
6 glass, slot-n-lock gobos + open
2 multicolor, 4 black / white
Gobo wheel spin at variable speed
16-bit gobo rotation
Gobo wheel 2: Indexed, rotating gobo wheel with gobo shake
6 glass, slot-n-lock gobos + open
1 multicolor, 5 black / white
Gobo wheel spin at variable speed
16-bit gobo rotation
Variable frost
Variable CTC filter (3,200K ~ 6,000 K)
CMY color mixing system with vector speed adjustments
3-facet, 5-facet, 3D, and infinite prism with macros
Variable shutter
Variable iris
Variable focus
Variable 16-bit dimming (0 ~ 100%)
Linear zoom (15° ~ 30°)
Individual reset of pan/tilt, color, gobo, shutter, prism, focus
Move-in-black for pan/tilt, color, gobo
Remote fixture reset, lamp on/off, and vector speed adjustments
Built-in movement macros with range adjustments
Built-in color macros
3-pin and 5-pin DMX connections
Two additional free glass gobos
User-configurable lamp ignition delay
User-configurable maintenance reminder
Electronic ballast with power factor correction
Electronic power supply
Automatic pan & tilt correction
Pan and tilt locks
Lamp & fixture use timers
Power saver mode

All gobos: 37.3 mm outside, 30 mm image, 5 mm max thickness
Beam Angle: 15° ~ 30°
Lux: 23,000 @ 5m, 15° zoom
5,000 @ 5 m, 30° zoom
Light source: Philips MSR Gold 1200SA/SE FastFit™ 6,000 K, 750 hrs
Osram HTI 1500 W/60/P50 Lok-It™™ 6,000 K, 750 hrs
GE CSR 1200/SA/TAL 5,800 K, 750 hrs
Power and current: 208 V, 60 Hz; 1,641 W, 7.89 A (operating), 3.4 A (inrush), PF 0.93
230 V, 50 Hz; 1,645 W, 7.15 A (operating), 3.3 A (inrush), PF 0.98
AC power: Auto-ranging 200 ~ 240 V, 50/60 Hz
Weight: 82.05 lbs / 37.22 kg
Size: 20.5 x 21.2 x 30.1 in / 521 x 539 x 764 mm


OPTIONAL EQUIPTMENT
W-DMX wireless receiver
W-DMX wireless transmitter
