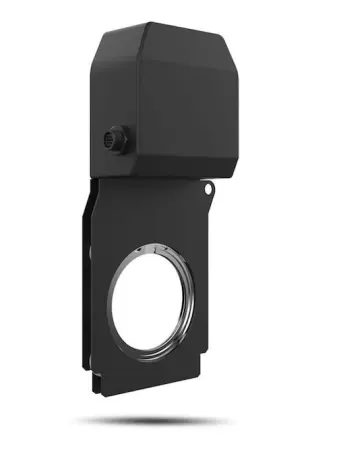

Ovation GR-1IP is an IP65 outdoor rated gobo rotator for the Ovation E-260WW IP. It can rotate continually in either direction as slow as 0.047 RPM (17 degrees per min), all the way up to 21 RPM. Power and control for this unique gobo rotator are delivered from the dedicated port on the Ovation E-260WW IP, and its fully indexable via the unit’s DMX personality. The rotator can hold two B-size gobos that counter rotate.

Features:

IP65 rated gobo rotator for one single or two counter-rotating gobos
Fully controllable via the Ovation E-260WW IP control personalities
Variable speed, bi-directional 0.047-21 RPM (17°- 7,560° per minute) standard rotation
Fully indexable positioning via DMX
Dedicated power/control supplied by the Ovation E-260WW IP
Stepper motor driven for ultra-quiet and super smooth movement without stalling or stuttering

Specifications:

Dynamic Effects
Gobos size: B (metal, glass or effect)
Effects: CW or CCW Rotation, indexing, infinite rotation at variable speeds
Speed Range: 0.047 – 21 RPM (17° - 7,560° per minute)

Construction / Physical
Dimensions: 10.9 x 4.7 x 2.2 in (277.5 x 120.5x 56.9 mm)
Weight: 2.4 lb (1.2 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast

Connections
Power Connection: Proprietary 4-pin IP65 input power/data
cord (19 in/483 mm)
Data Connectors: Proprietary 4-pin IP65 input power/data
cord (19 in/483 mm)
Cable Length (power/data): 19 in/483 mm

Control
Control Protocol: DMX
DMX Channels: 1

Electrical
Input Voltage: 24 VDC, 372 mA (via Ovation E-260WW IP)

Certifications / Qualifications
CE
IP Rating: IP65, temporary outdoor/wet use
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included
Ovation GR-1 IP
Power & Data Control Cable

Chauvet Professional Ovation GR1-IP (Chauvet Pro OVATIONGR1IP)
