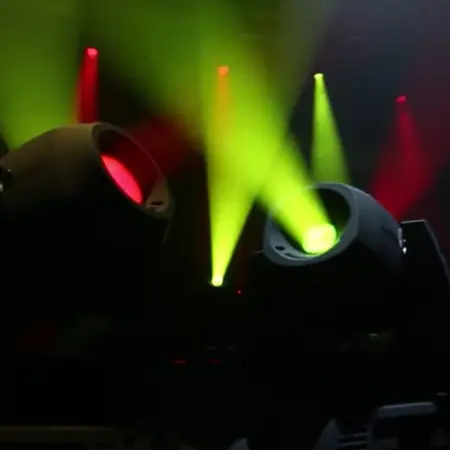

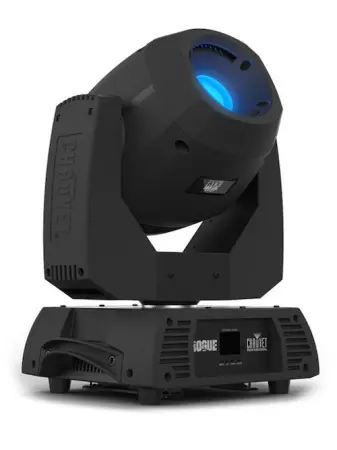

Rogue R1X Spot brings innovation and creativity with a rotating 3-facet prism for stunning aerial effects, a motorized iris and focus for beam shaping, as well as two gobo wheels, one of which rotates and has 7 interchangeable gobos for custom looks. Rogue R1X Spot shines brightly with a 170 W LED light source in a 16° beam angle for crisp gobo projections in a range of eight beautiful colors.

Features:

Bold, bright 170 W LED light engine for punchy, solid beams
Color wheel with 8 colors, split color ability, and continuous variable-speed scrolling
Two gobo wheels: one fixed slot scrolling wheel and one rotating, interchangeable, scrolling wheel
Iris and 3-facet prism for stunning visual effects
Neutrik® powerCON® power input/output connections for power linking
3- and 5-pin DMX input/output connections
RDM enabled for remote addressing and trouble shooting
Selectable LED maximum output to match legacy Rogue R1 Spots
Selectable PWM settings to maintain flicker free operation on camera
Simple and complex DMX channel profiles for programming versatility

Specifications:

Optical
Light Source: 1 LEDs (CW) 170 W, (7.4 A), 9491 K, 50,000
hours life expectancy
Color Temperature (at full): 9491 K
Beam Angle: 16°
Illuminance (total): 4,620 lux @ 5 m
Selectable LED Power output: 50-100
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000
Hz, 15,000 Hz

Dynamic Effects
Pan and Tilt: 540°/250°
Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 250° tilt
Colors: 8 + white, split colors, continuous scroll at variable
speeds
Gobos (1): 7 + open (7 metal), rotating, interchangeable,
indexing, slot-n-lock, continuous scroll at variable speeds
Gobos (2): 8 + open (8 metal),continuous scroll at variable
speeds
Gobo Size: Gobo Wheel 1 (rotating): Positions 1, 2, 3, 4, and
7 (metal); size: 26.9 mm (outside), 22.5 mm (image), 0.5 mm
(max. thickness)
Gobo Size: Gobo Wheel 1 (rotating): Positions 5 and 6
(glass); size: 25 mm (outside), 23 mm (image), 3 mm (max
thickness)
Dimmer: Electronic
Shutter/Strobe: Electronic
Focus: Motorized
Iris: Motorized
Prism: 3 Facets, motorized, rotating
Strobe Rate: 0 to 22 Hz
Move in Black: Yes

Construction / Physical
Dimensions (single unit): 11.10 x 14.20 x 17.60 in (282 x 360
x 447 mm)
Weight (single unit): 37.6 lb (17.1 kg)
Exterior Color: Black
Housing Material: High-impact flame-retardant polymer

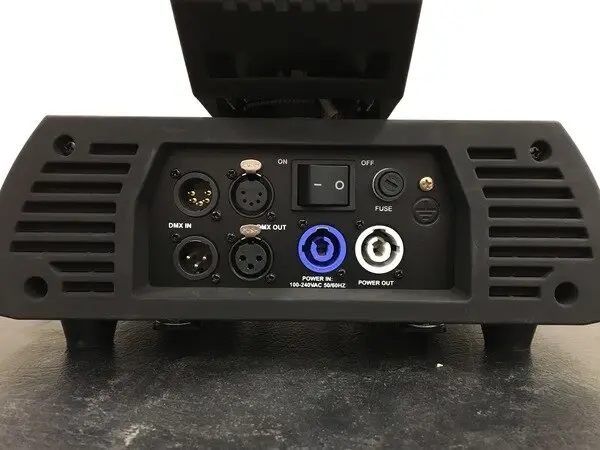

Connections
Power Connection: Edison (Local) plug to Neutrik®
powerCON®
Power Input: Neutrik® powerCON®
Power Output: Neutrik® powerCON®
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)

Control
Control Protocol: DMX, RDM
DMX Channels: 16 or 19
Modes/Personalities: 2 personalities (16, 19)
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 5 units @ 120 V; 9 units @ 208 V; 10 units @
230 V
Power and Current: 319 W, 2.69 A @ 120 V, 60 Hz
Power and Current: 303 W, 1.49 A @ 208 V, 60 Hz
Power and Current: 297 W, 1.33 A @ 230 V, 50 Hz

Certifications / Qualifications
CE, MET
IP Rating: IP20, dry location

What's Included
Rogue R1X Spot
Neutrik powerCON power cord
2 Omega brackets with mounting hardware

Chauvet Professional ROGUER1XSPOT (Chauvet Pro Rogue R1XSpot)
