This product has been discontinued by the manufacturer. Please contact us to find a replacement.

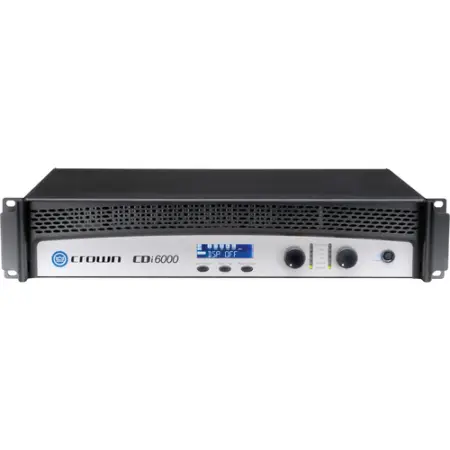

Crown CDI 6000
Product Highlights
Rackmount Design
Low-Z or 70/140V Operation
Protection Circuitry
Integrated DSP
Universal Power Supply
Description:
Crown CDi Series amplifiers are professional tools designed and built for
installed sound applications. The series includes four models which are
identical except for output power: CDi 1000, CDi 2000, CDi 4000, and CDi 6000.
All are rugged and lightweight, and offer unmatched value in their class.
Features:
Features
Extremely versatile; rated for 2-, 4-, 8-ohm loads and 70V and 140V outputs.
Switch-mode universal power supply.
Intuitive front-panel LCD screen for quick, easy configuration.
Onboard digital signal processing includes crossovers, EQ filters, delay, and
output limiting.
Up to 20 user defined DSP presets are available.
Specifications
Frequency Response (at 1 watt into 4 ohms, 20Hz - 20 kHz): +0/–1 dB
Signal to Noise Ratio (below rated 8-ohm power at 1 kHz, A-weighted): 100 dB
Damping Factor (8 ohm): 20 Hz to 400 Hz: > 500
Input Stage: Input is electronically balanced and employs precision 1% resistors
AC Line Current: CDi 1000: 11.50A, CDi 2000: 11.93A, CDi 4000: 11.75A; At idle:
Draws no more than 45 watts.
Crosstalk (below rated power) 20 Hz to 1 kHz: > 70 dB
Input Impedance (nominal): 20 kilohms balanced, 10 kilohms unbalanced
Load impedance (note: safe with all types of loads) Dual; Bridge mono: 2–8 ohms;
4–16 ohms
Voltage Gain (at 1 kHz, 8 ohm rated output): CDi 1000: 30.5 dB, CDi 2000: 32.9
dB, CDi 4000: 34.2 dB
Sensitivity (at 8 ohm rated output): 1.4V
Maximum Input Signal: +22 dBu typical
Operating Temperature: 0° C to 40° C at 95% relative humidity (non-condensing)
AC Line Voltage and Frequency Configurations Available (± 10%): 100V, 120V-240V,
50/60 Hz
Ventilation: Flow-through ventilation from front to back
Cooling: Heat sinks and proportional-speed fan
Dimensions: Width, Height, Depth (behind mounting surface): EIA Standard 19 in.
Wide (EIA RS-310-B); x 3.5 in. (8.9 cm) High x 12.25 in. (31.1cm) Deep; CDi 6000
is 16.2 in. (41.15 cm) deep.
Net Weight: CDi 1K, 2K, 4K: 19 lb (8.6 kg).; CDi 6K: 24 lb (10.9 kg).
Shipping Weight: CDi 1K, 2K, 4K: 22 lb (10.0 kg).; CDi 6K: 30 lb (13.6 kg).
Minimum Guaranteed Power | CDi 1000 | CDi 2000 | CDi 4000 | CDi 6000 |
Per channel, both channels drivenb> | ||||
2 ohm Dual (per channel) 4 ohm Dual (per channel) 8 ohm Dual (per channel) 4 ohm Bridge-Mono 70V Dual (per channel) 140V Bridge-Mono |
700W* 500W 275W 1,400W* 500W 1,000W |
1,000W* 800W 475W 2,000W* 800W 1,600W |
1,600W* 1,200W 650W 3,200W* 1,000W 2,000W |
3,000W* 2,100W 1,200W 6,000W* 2,500W* 5,5,000W |
With 0.5% THD *With 1% THD |
