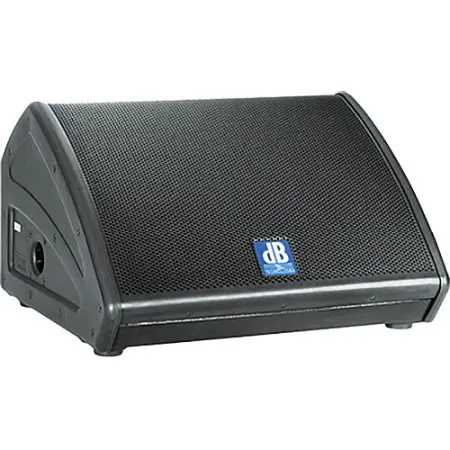

FLEXSYS FM12
Active Coaxial Stage Monitor 12" / 1" 600 Watt

The FM 12 is the first choice for demanding musicians and DJs who work in loud environments.

Featuring a 12“ woofer and considerable power handling capability, it is well equipped for use as a powerful fullrange monitor.

The FM 12 packs an assertive punch, rendering lead vocals, guitars, electronic instruments, and playback tracks with power and authority.FM Series monitors feature a powerful DSP that offers a crossover, digital multiband limiters, phase correction, and eight variable presets that serve to adapt the monitor to the varying demands of vocalists, instrumentalists, and audio playback applications.

digipack digital amplifiers — from a world leader in technology.
Our fully integrated digipack™ modules were developed specifically for use in very compact active systems, based on the innovative technology designed for our digipro® power amps and used in our high-end DVA and DVX series products.

Specifications:

Technical Data
Speaker Type: 2-Way Active Coaxial Stage Monitor

Acoustical data
Frequency Response [+/- 3dB]: 67 - 20.000 Hz
Max SPL: 126 dB
HF: 1 "
Type HF: compression driver
Horn: CD Horn
LF: 12"

Amplifier
Amp Technology: Digipack™
Amp Class: Class D
Power PRG: 600 W
Peak Power: 1200 W

Processor
Controller: DSP 24bit/48kHz
System Presets: 8 presets
Limiter: Dual Active Peak, RMS, Thermal

Input
Mechanics
Housing: Multiplex with H.E.T coating, reinforced
Housing Design: Multifunctional, Low Profile
Angles Up: 2 monitor angles °
Width: 450 mm (19.6 in)
Height: 290 mm (11.6 in)
Depth: 410 mm (16.4 in)
Weight: 17 kg (37.48 lbs)

db technologies flexsys FM 12 (dB Tech Flex sys FM12)
