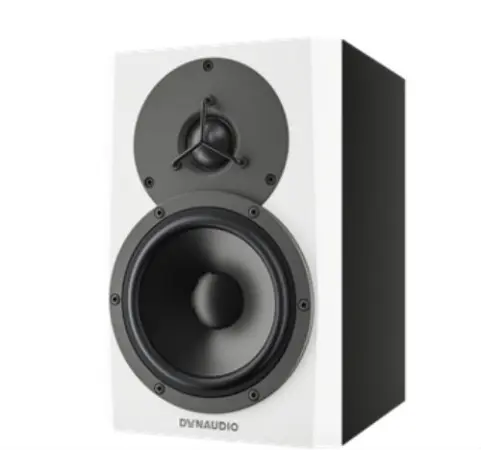

LYD 5
Nearfield Monitor with 5" Woofer
Bi-amped speaker design with 2 x 50W and state-of-the-art Class-D amplification
Bass extension to extend or curtail the low end frequency response
Two different tunings: one for free standing and one designed for speakers within 50 cm of wall
Sound balance to influence the overall response of the speaker
Made in Denmark

The LYD 5 is our premium small-format near-field monitor. With its low volume precision, LYD is the perfect fit for smaller setups and home studios. LYD uses lightweight aluminium wire and voice coils in its handmade drive units, along with a state-of-the-art Class-D amplifier with a 96 kHz / 24bit signal path and DSP used just right to provide outstanding performance.

The aluminium voice coil and wire are low mass so its transient response is quick and accurate. To ensure the ideal mix between stiffness, weight, and dampening for unrivalled accuracy, we mould the diaphragm and dust cap in one piece with our proprietary Magnesium Silicate Polymer.

Features:

Nearfield monitor with 5'' woofer
Max. SPL (1m, pair): 106dB
Crossover Freq.: 5200 Hz
Freq. Response of 50Hz - 22kHz
HF 50W/LF 50W Class-D amplification
Bass Extension
Position switch
Sound Balance

The latest edition to our Professional monitors - LYD - redefines power and precision

LYD excels at low volume precision making them perfect for the smaller setups, edit rooms, and home studios.

Each drive unit is handcrafted in our factory in Skanderborg, Denmark using our soft-dome tweeters and MSP woofers to ensure an ideal sound dispersion.

Dynaudio monitors are designed to speak the truth so you get exactly what you need: an exact reproduction of your mix. Great mixing derives from attention to detail while striving for a final mix that goes way beyond the sum of its parts. We believe that the same principle applies when designing ultimate monitors.
Utmost care in selection of materials and production combined with the industry's most thorough and extensive testing program allow our monitors to achieve 100 percent consistency - not just between different pairs, but also when crossing pairs or relying on pairs in different locations.

And due to our unique driver technology our monitors are neutral and uncolored. The smooth clarity in combination with the outstanding dynamic capabilities of our monitors ensure that you can work long hours without ear fatigue.

Specifications:

Powered
Power Configuration Bi-amped
LF Driver Size 5" woofer
LF Driver Material Aluminum voice coil with magnesium silicate polymer cone
HF Driver Size 1.1" soft dome tweeter
LF Driver Power Amp 50W
HF Driver Power Amp 50W
Total Power 100W Class D
Frequency Response 50Hz-22kHz
Crossover Frequency 5200 Hz
Maximum Peak SPL 106 dB SPL @ 1m
Input Types 1 x XLR, 1 x RCA
Height 10.2"
Width 6.7"
Depth 8.3"
Weight 12.5 lbs.

Dynaudio lyd5 (DynAudio LYD-5)
