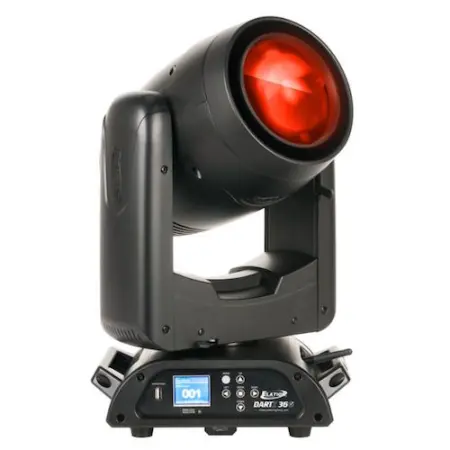

The DARTZ 360™ is a unique, compact, narrow beam luminaire featuring a new patent pending single source 50W RGB LED engine producing an impressive 3° aperture, amazing high output level, and smooth color-mixed effects that can be used in a variety of applications requiring no minimum safe project distance as with typical discharge lamp beam fixtures, fast and precise 16-bit continuous 360° pan and tilt rotation, 14 static-stamped metal gobos, 6-facet linear and 8-facet independent rotating prisms, 0-100% linear frost filter for wash effects, high speed electronic shutter and strobe, electronic dimming and variable dimming curve modes, adjustable LED refresh rate and gamma brightness for flicker free operation for TV and FILM, DMX, RDM (Remote Device Management), Kling-Net, Art-NET, and sACN protocol support, Elation’s E-FLY™ internal wireless DMX transceiver, 5pin XLR, RJ45 etherCON, and powerCON TRUE1 in/out connections, full color 180° reversible menu display with multi-button control panel, battery backup for display power, and a multi-voltage universal auto switching power supply (100-240v).

Features:

Compact Precise 360° Pan/Tilt Moving Beam Luminaire
Patent Pending Single Source 50W RGB LED Engine
No Minimum Safe Project Distance Like Discharge Fixtures
3° Sharp Aperture with Motorized Focus
Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
14 Static-Stamped Metal Gobos
6 Linear and 8 Facet Independent Rotating Prisms
0-100% Linear Frost Filter for Wash Effects
High Speed Electronic Shutter and Strobe
Electronic Dimming and Variable Dimming Curve Modes
DMX, RDM, Kling-Net, Art-NET, and sACN Protocol Support
Elation’s E-FLY™ Internal Wireless DMX Transceiver
Adjustable Refresh Rate Frequency and Gamma Brightness
Flicker Free Operation for TV and FILM

Specifications:

SOURCE
Patent Pending 50W RGB LED Engine
50,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.


PHOTOMETRIC DATA
29,562 LUX 2,746 FC @16.4’ (5m) (3° Full ON)


EFFECTS
Motorized Focus
6 and 8 Facet Independent Rotating Prisms
0-100% Linear Frost Filter for Wash Effects
High Speed Electronic Shutter and Strobe
16-Bit Variable Dimming Curve Modes
Adjustable LED Refresh Rate and Gamma Brightness


COLOR
RGB Smooth Color Mixing


GOBOS
14 Static-Stamped Metal Gobos


CONTROL / CONNECTIONS
(3) DMX Channel Modes (19 / 22 / 25)
360° Continuous Pan and Tilt 8 / 16 Bit Movement
Adjustable Refresh Rate (900-25,000 (Hz)
Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
6 Button Menu Control Panel
Full Color 180° Reversible LCD Menu Display
DMX, RDM, Kling-net, Art-NET and sACN Protocol Support
Elation E-FLY™ Internal Wireless DMX Transceiver
5pin DMX, RJ45 Ethernet In/Out
powerCON TRUE1Power In/Out


SIZE / WEIGHT
Length: 11.2” (284.15mm)
Width: 7.7” (195.97mm)
Vertical Height: 17.9” (454.7mm)
Weight: 28.0 lbs. (12.7 kg)


ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
154W Max Power Consumption
14°F to 113°F (-10°C to 45°C)


APPROVALS / RATINGS
CE | IP20

Elation Professional Dartz 360 (Elation DAR880)
