Elation EVLED 256
DISCONTINUED
This product has been discontinued by the manufacturer. Please contact us to find a replacement.
*Discontinued
Elation EVLED256

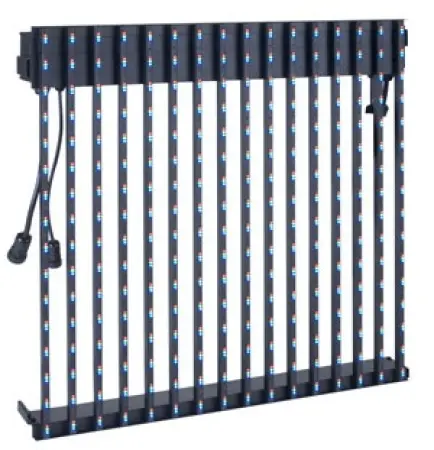

The Elation EVLED 256 - 37mm LED Video Screen -
37.5mm Pitch - Light Weight Low Resolution Transparent LED Video Screen
Pixel Pitch : 37.5 mm (1.5")
Transparency: 55%
Curtain Composition: Al-alloy frame, electronics onboard w/ rubber gasket for
weatherproof IP 65 rating
Tile Size: 600 X 600 X 75 mm/tile (2 x 2)
Tile Weight: 4.5 kg/tile (10lbs.)
Tile Area: 0.36m2/tile
Luminosity: 2000 nits
Color Temperature: 6500 k
Visual Angle 110 / 50° (50% brightness)
Visual Range: 160 / 120°
Pixel Configuration: 1R 1G 1B (DIP)
Tile Rsolution: 16 x 16 pixels/tile
Pixel Resolution: 711 pixels/m2
LED Quantity: 2133 LEDs/m2
Color Number: 14 Trillion
Processing Depth: 14 bits
Contrast Ration: 2,000:1
Life Span: 100,000 hours - LED: 50,000-70,000 hour - floor body
Frame Rate : 60Hz
Data Refresh Rate: 800Hz
Display Mode: Synchronous with video source
LED Failure Rate: 1/10,000
MTBF: > 10,000 hours
Drive Mode: Static, Constant Current Drive
Power Supply: AC 100-240V, 50Hz or 60 Hz
Working Voltage: DC 5V
Power Consumption: 250 w/m2(max): 150 w/m2(average) / 60W per panel
Ingress Protection: Front: IP65, Back: IP65
Ambient Temperature: -20 to +50 Celsius Degree
Relative Humidity: 10% to 99%
