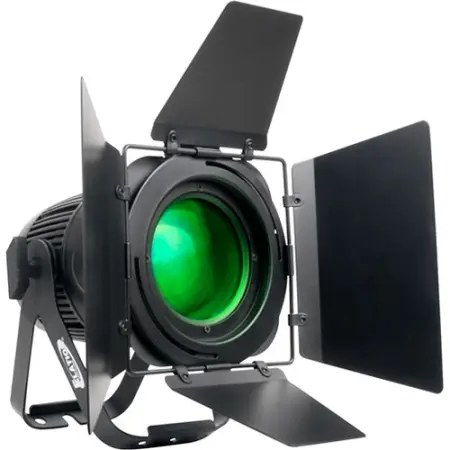

The IP65 rated FUZE PAR Z60 IP™ is a single source silent operating par luminaire with a 60W Quad Color RGBW COB LED. Features 7° to 39° motorized zoom, RGBW color mixing, electronic strobe and selectable dimming curve effects, DMX and RDM (remote device management) protocol support, IP rated 5pin XLR and powerCON TRUE1 in/out connections, LCD menu display with 4 touch button control panel, dual adjustable yokes, multiple unit power linking, flicker free operation for TV and FILM, a multi-voltage universal auto switching power supply (110-240v), and removable gel frame and barn doors included.

Features:

Features
IP65 Rated
60W RGBW COB LED Par Luminaire
7° to 39° Motorized Zoom Range
Silent Operation
RGBW Color Mixing
Dual Adjustable Yokes
Multiple Unit Power Linking
Flicker Free Operation for Broadcast TV and FILM

Specifications:

SOURCE
60W RGBW COB LED
100,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA
3,813 LUX 354 FC @9.8’ (3m) (7° Full ON)
228 LUX 21 FC @9.8’ (3m) (39° Full ON)

COLOR
RGBW

EFFECTS
RGBW Color Mixing
7° - 39° Beam Zoom Range
Electronic Strobe, Dimming and Variable Dimming Curves
64 Color Presets and 14 Unique Color Macros

CONTROL / CONNECTIONS
12 DMX Channel Modes (13 Total Channels)

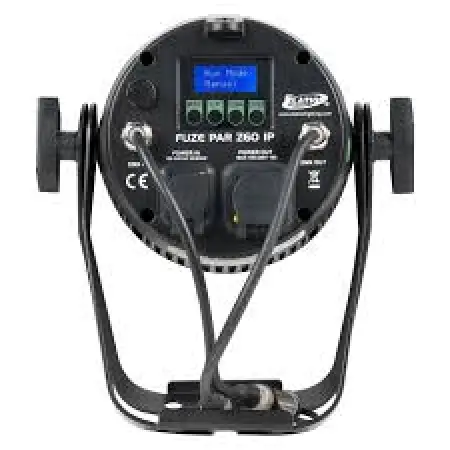

4 Button Touch Control Panel and LCD Menu Display
RDM (Remote Device Management)
IP Rated 5pin DMX and powerCON TRUE1 In/Out

SIZE / WEIGHT
Length: 10.0" (253mm)
Width: 9.9" (252mm)
Vertical Height: 11.1" (282mm)
Weight: 10 lbs. (4.5 kg)

ELECTRICAL / THERMAL
AC 110-240V - 50/60Hz
78W Max Power Consumption
Multiple Unit Power Linking
5°F to 113°F (-15°C to 45°C)

APPROVALS / RATINGS
CE | cETLus | IP65

INCLUDED ITEMS
Gel Frame
Barn Door
powerCON TRUE1 Power Cable

Elation Professional Fuze Par Z60IP (Elation FUZ001)
