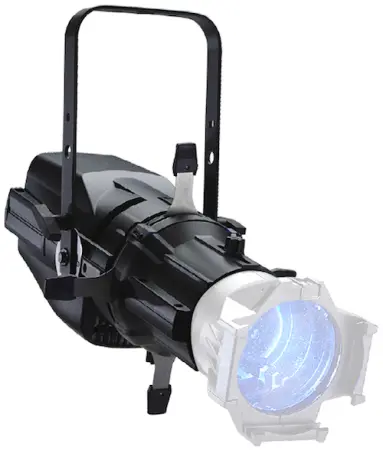

Elec Theatre Controls ColorSource Spot with Shutter Barrel and PowerCON to Edison Connector in Black

With its precise combination of red, green, blue, and lime emitters, along with affordability and ETC build-quality, the ColorSource Spot outshines other 4-color LED profiles. ETC's extensive color-mixing expertise shines through in this fixture allowing it to emit brighter, richer and more believable colors than other budget LED luminaires, especially at the warm end of the spectrum. This particular model [CSSPOTS-0-A] includes the Shutter Barrel and PowerCON® to parallel blade U-ground (Edison) connector.

The ColorSource Spot is great for use in houses of worship, universities and schools, hospitality, retail, exhibition centers, meeting rooms, clubs, and cafetoriums.

The ColorSource Spot is intuitive and approachable for anyone from amateur to seasoned pro. It works with any lighting-control desk, or it can be used console-free, so you can just plug the ColorSource Spot in, punch a couple buttons on its user interface, and be good to go. No special training or lighting experience necessary.

The ColorSource Spot accepts all the accessories, zoom and fixed-focus lens tubes, and CYC and Fresnel adapters that fit ETC’s Source Four® LED luminaires. You get the versatility of the Source Four LED system in an affordable fixture capable of filling any role in a light rig.

The ColorSource Spot has durability you can count on. ETC manufactures each luminaire at their factory, putting it through our rigorous quality tests. And it's backed-up with their industry-leading, 24/7/365 technical service and customer support.

NOTE: Lens tubes sold separately.

Features:
Easy-to-use, simple RGB control adds lime automatically when needed
RDM capability
Power in and thru with PowerCON connectors
DMX in and thru
Low-noise fan operation
Droop compensation for consistent output
Optically calibrated
Homogenized optics
Includes slots for glass or stainless steel patterns and soft focus diffuser
Accessory slot for motorized pattern devices or optional iris (sold separately)
Accepts all Source Four® LED accessories and lens tubes (sold separately)
Works with Source Four LED Fresnel and Source Four LED CYC adapters (sold separately)
ETC ColorSource Spot Specifications:
General

Part #: CSSPOTS-0-A
ETL Listed to UL1573: the standard for stage and studio lighting units
IP20-rated for indoor use
Power and DMX in/thru connections for easy setup
Simple seven-segment, three-button interface with easy access to 12 customizable presets and five sequences
Physical

Rugged, die-cast, all-metal housing
Available in black (standard), white, silver or custom colors (contact factory)
C-clamp included
Positive-locking double-clutch fixture body
Slot for glass or stainless steel patterns and soft-focus diffuser
Wide accessory slot with sliding cover for motorized pattern devices or optional iris
Hanging yoke standard. Optional yoke/floor-stand available
Dimensions: 23.33" H x 13.36" W x 20.11" D (593 x 339 x 511mm)
Weight*: with Barrel: 17 lbs (7.7 kg)
Shipping Weight*: with Barrel 22 lbs (10 kg)
* Not including mounting hardware or lens tube.
Electrical

100VAC to 240VAC 50/60Hz universal power input
PowerCon power in and thru connections
Up to nine ColorSource Spot fixtures (15A max) may be linked via power thru connector (10 ColorSource Spot luminaires total per circuit) when used with R20 Relay Module or Unison Echo™ Relay Panel
-- Consult breaker-trip curves when used with other equipment. Requires power from a non-dim source
Inrush
120V: 28A (First half-cycle)
240V: 46A (First half-cycle)
LED*

20,000-hour LED life (20,000 hours to 70% intensity)
60 Luxeon® Rebel LED emitters
*Notes on LED Luminaires

All LED sources experience some lessening of light output and some color shift over time. LED output will vary with thermal conditions. Based on the LED manufacturer’s B50 L70 specification, a ColorSource Spot luminaire will achieve ~70% of its initial output after 20,000 hours of typical usage. In individual situations, LEDs will be used for different durations and at different levels. This can eventually lead to minor alterations in color performance, necessitating slight adjustments to presets, cues or programs.

Color

Exclusive RGB-L color array
Brightness and color range unlike any other four-color system.
Optical calibration for consistency from fixture to fixture
Droop compensation for consistent output and color accuracy
Optical

Use the included soft-focus diffuser for creating washes or soft light
Best performance using ETC’s EDLT lens tubes
Can use all ETC Source Four® interchangeable lens barrels: 5°, 10°, 14°, 19°, 26°, 36°, 50°, 70°, and 90° field angles, as well as 19°, 26°, 36°, and 50° EDLT lenses
For better performance, use the LED 50° barrel
Can be used with Source Four LED CYC and Fresnel adapters
Control

Available with DMX512 in and thru via five-pin XLR or RJ45 connectors
Simple RGB control (IRGBS profile)
See DMX Control Table for additional information
15-bit virtual dimming engine provides smooth, high-quality theatrical fades and minimizes color shift during dimming
RDM functionality for address and setting change
Local control of presets (12) and sequences (5)
Thermal

Ambient operating temperature of 32° to 104°F (0° to 40°C)
Active electronic thermal management for droop-free operation
Quiet fan cooling
Fixture is designed for continuous operation up to 104°F (40°C) ambient temperature and requires free flow of air around fixture housing

ETC Colorsource spot (Pro CSSPOTS-0-A)
