Passive 2 way speaker
Power:250W/8ohm
Equipped with:
LF: 10” woofer with 2” voice coil custom made for FBT
HF: Driver with 1.4'' diaphragm & 1” exit throat
SPLMax:123db
Frequency response: 68Hz - 20KHz
Sensitivity (dB): 96db
Impedance(Ohm): 8ohm
Coverage (H x V): 90° x 60° rotatable
35° or 45° monitor taper

Specifications:

Type 2 way
LF 10'' - 2'' coil
HF 1'' / 1.4'' coil
Frequency response (@-6dB) 68Hz - 20KHz
Power programm (Wrms) / Max(peak) 250/500W
Impedance(Ohm) 8
Coverage (H x V) 90° x 60° rotatable
Sensitivity(dB) 96
Max SPL (dB) 120 / 123
Recommended HP filter HP55Hz - 12-24db/oct
Crossover f (kHz) 2.5
Connections 2 x SPEAKON
Housing Polypropylene molded enclosure
Rigging Integrated handles, M10 rigging points for suspended installation, 35mm stand socket and monitor taper
Dimentions (mm) 300x536x301,5mm
Weight (Kg) 12.5kg

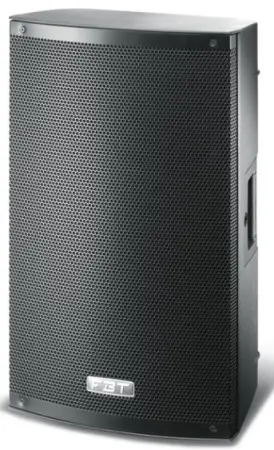

FBT X-lite 10 passive (FBT Xlite10)
