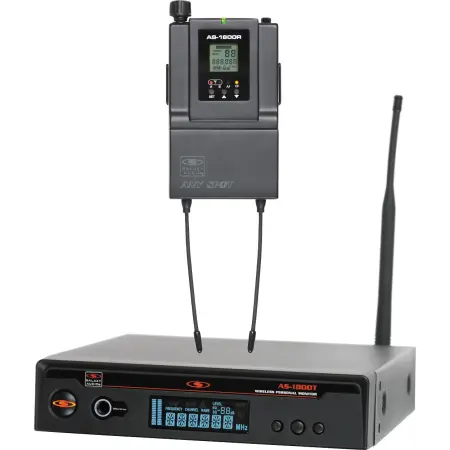

The AS-1800 is designed with features for the professional. The body pack receiver is set up for a king. With 150mW's of output to the ear buds, the AS-1800R is sure to be plenty loud for any environment. The receiver has a squelch adjustment, stereo/mono switch, LCD display, button lock, and a Magnesium Alloy Construction.

Single Rack Mount Included
Naming Function
30/100 mW Selectable Transmitter Output
Monitor Output
300' Range
UHF Frequency
640 Selectable Frequencies/ 32 Selectable Channels
Ear Buds

An unlimited number of receivers may be added at any time.


AS-1800 System
Frequency Range and Transmitter Output Level
Band: UHF
Frequency Range: B3 554~570 MHZ
Transmitter Output Power: 30mW or 100mW
Operating Range: Under Typical Conditions 300' (92m)
Note: actual range depends on RF signal absorption, reflection, interference, and battery characteristics
Frequency Stability: ±0.0005%, Phase Lock Loop frequency control
Total Harmonic Distortion: < 0.7% @ 1KHz
Signal to Noise: >105dB
Maximum Deviation Range: ±68KHz
Operating Temperature: Range 14ºF to 122ºF (-10 Cº to +50 Cº)

Mixed Mono Mode
The Mixed Mono feature allows performers to adjust the balance of the Left and Right audio signals sent from the transmitter right on the body pack.

With Mixed Mono:
- the performers can have their vocals in Input 1 and the band mix in Input 2 and adjust the volume of each independently to create their own personal mix, or
- you can send two different monitor mixes from the board so each performer can decide which mix they want to hear on their belt pack.

AS-1800T Transmitter
Main Frame Size: EIA STANDARD ½ U
Channels: 32 Channels / 640 Selectable Frequencies
Frequency Stability: ±0.0005%, Phase Lock Loop frequency control
Available Frequencies:B3 554~570 MHZ
Modulation Mode: FM stereo modulation
Output Power: 30mW or 100mW
Operating Range: 300' (100M) typical (in open space)
Oscillation: PLL synthesized
Spurious Rejection: <-60dBm
Maximum Deviation Range: ±68KHz
Band Width: 16MHz
S/N: >105dB
T.H.D.: < 0.7% @ 1KHz
Frequency response: 45Hz~18KHz±1dB
Audio Input: Line level X 2, XLR/ ¼" Combo jack
Audio Output: 6.3mmφ unbalanced jack X 2
Dimensions: 1.7" x 8.2" x 8.1" (44mm (H) x 209mm (W) X 206mm (D)
Weight: 2.3 lbs 1.04kg

AS-1800R Bodypack Receiver
Channels: 32 Channels / 640 Selectable Frequencies
Frequency Stability: ±0.0005%, Phase Lock Loop frequency control
Available Frequencies: B3 554~570 MHZ
Modulation Mode: FM stereo modulation
Operating Range: 300' (100M) typical (in open space)
Oscillation: PLL synthesized
Sensitivity: 6dBμV, S/N>60dB at 25 deviation (mono)
Band Width: 16MHz
Max. Deviation Range: ±68KHz
S/N: >105dB
T.H.D.: <0.7% @ 1KHz
Frequency response: 45Hz~18KHz±1dB
Stereo Separation: ³45dB (at 1KHz)
Output Connector: 3.5mm (Ø) stereo earphone connector
Output Power: 150mW at 1KHz (THD1%)
Battery: AA X 2
Current Consumption: 185mA typical
Battery Current / Life: About 7 hours
Dimension: 4.25" x 2.6" x 0.87" (108mm(H) X 66mm(W) X 22mm(D))
Weight: 0.35 lbs (0.16kg)

Galaxy AS1800 Sys (Galaxy Audio AS 1800 Wireless Monitor System)
