This product has been discontinued by the manufacturer. Please contact us to find a replacement.

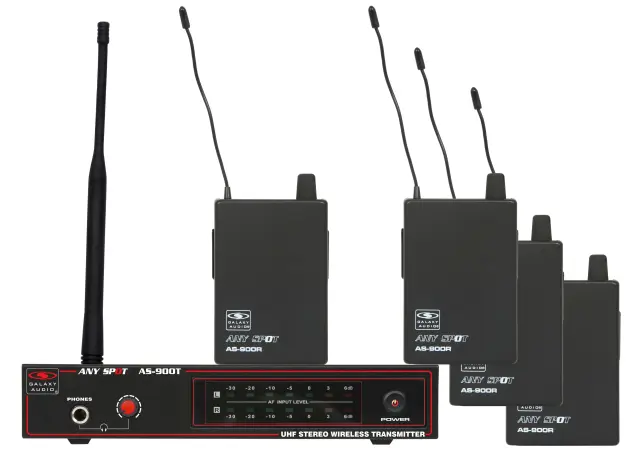

AS-900-4 BAND PACK
Wireless Personal Monitors Assistive Listening Wireless Monitors
The 900 Band Pack Systems makes it easy for any band to Get Personal. The system includes four receivers and one transmitter. It is designed to get the whole band wireless in one package. The AS-900-4 will allow a band to send one stereo mix to 4 individuals. Additional transmitters may be purchased at a later date to add mixes.
AS-900T Transmitter
AF L/R Indicator
Transmits in Stereo or Mono
Fixed Frequency
XLR/¼" Combo Input
RF Output 10 mW
AS-900R Receiver
Headphone Out Volume Control
80 mW
RF Indicator
Low Battery Indicator
3.2 oz (90 g)
AS-900 Transmitter ----------------------------------------------------------
Max Audio input level +6dBV
Gain Adjustment Range 40dB
nput Impedance 100kΩ
Dimensions 1.5" x 8.3" x 3.8" (38mm H x 212mm W x 96mm D)
Weight 21oz. (605 g)
Power Requirements 12-18 V dc at 300mA supplied by external power supply
XLR input Impedance balanced
Pin 1 Ground(cable shield)
Pin 2 Audio
Pin 3 No Audio
AS-900 Receiver ----------------------------------------------------------
Audio Output Level 80mW
Sensitivity -94dBm for 30dB
Image Rejection >70dB
Dimensions 3.74" x 2.6" x 1" (95mm H x 65mm W x 25mm D)
Weight 3.2oz (90 g) without batteries
Power Requirements 2 (AA)size alkaline or rechargeable batteries
Battery Life About 5 hours
