Gemini UHF-216HL
- DISCONTINUED

product discontinued

This product has been discontinued by the manufacturer. Please contact us to find a replacement.

*Discontinued

With multiple frequencies, as well as dual receivers and transmitters with a range of up to 250 feet, Gemini’s UHF-216 wireless systems provide clear sound reproduction over sixteen selectable frequencies to ensure optimal transmission with no interference.

Available in two versatile configurations, Gemini’s UHF-216 systems offer a solution for nearly any application, whether you’re performing as a lead singer, making a presentation, DJing a wedding or leading a fitness class.  Both systems include two single-channel transmitters operating on different frequencies that transmit to dual receivers housed in one unit.  There’s even individual level control for each channel.

The UHF-216M includes two handheld unidirectional dynamic microphone transmitters that provide professional audio reproduction thanks to high-sensitivity cardioid capsules.  Special noise-absorption components within the barrels of the microphones also eliminate switch shock and handling noise, giving your performance that seamless audio clarity you crave.

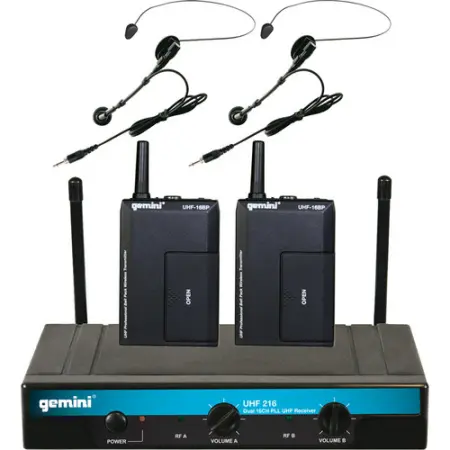

And if you’re looking for a versatile, hands-free microphone solution, the UHF-216HL includes two convertible headset/lavalier mics and two belt pack transmitters, making it perfect for presenters, public speakers, DJs and fitness instructors.  For total comfort, the headsets are lightweight and discreet with soft padding, plus the microphones come with foam screens to limit popping and reduce wind noise during outside operation.

Using Phase Locked Loop (PLL) circuitry to prevent phasing issues that plague other wireless systems, the receivers also boast LED indicators for Power and Channel, along with rotary Volume control for each channel.  Plus, Channel Selector Pins on the receivers and transmitters allow you to set the desired frequency quickly and easily.  And for convenient control over your audio, the microphone transmitters and belt pack transmitters also feature Mute switches, allowing you to swiftly silence the audio signal when you don’t want your vocals heard.

Offering faithful sound reproduction and reliable operation in a variety of settings and situations, Gemini’s UHF-216 series gives you the power to elevate your performance with total freedom of mobility.

Features:

High quality (single channel) UHF receiver with 250' range
US: 16 operating frequencies between 682MHz and 697MHz
EUR: 16 operating frequencies between 854MHz and 864MHz
Phase Locked Loop (PLL) circuitry for increased reception
RF and AF LED indicators for monitoring incoming signal strength
Auto mute with squelch control and built-in noise reduction
Front panel output level control
Standard (1/4" 6.3mm jack) output
2x Combo headset/lavaliere (UHF-216HL)
Low battery LED indicator
Microphone On/Off switch

Specifications:

System
Type of System
UHF Frequency Agile

RF Carrier Frequency Range
682 - 698MHz

Maximum Operating Distance
250' (76.2m)

Overall Frequency Response
50Hz to 15kHz (+/- 3dB)

16 Channels

Receiver
Type of Receiver
UHF-216

Type of Outputs
1/4" Phone

Power Requirements
12-18VDC

Battery Type/Approx. Life
AC Power Only

Antenna Type
BNC-type, 50 ohms

Bias voltage
12VDC, 60mA, each

Dimensions (WxHxD)
6.69 x 1.18 x 4.05" (170 x 30 x 103mm)

Transmitter
Type of Transmitter
Headset / Lavalier x2

Type of Microphone
Headset / Lavalier Combo

Condenser

Polar Pattern
Cardioid

Battery Type/Approx. Life
Two 1.5V AA alkaline

Mute Switch
Off/On Switch

RF Power
10mW (Max)

Dimensions
2.59 x 3.81 x 0.98 (66 x 97 x 25mm)

Packaging Info
Package Weight 2.5 lb
Box Dimensions (LxWxH) 13.0 x 11.0 x 3.0"
