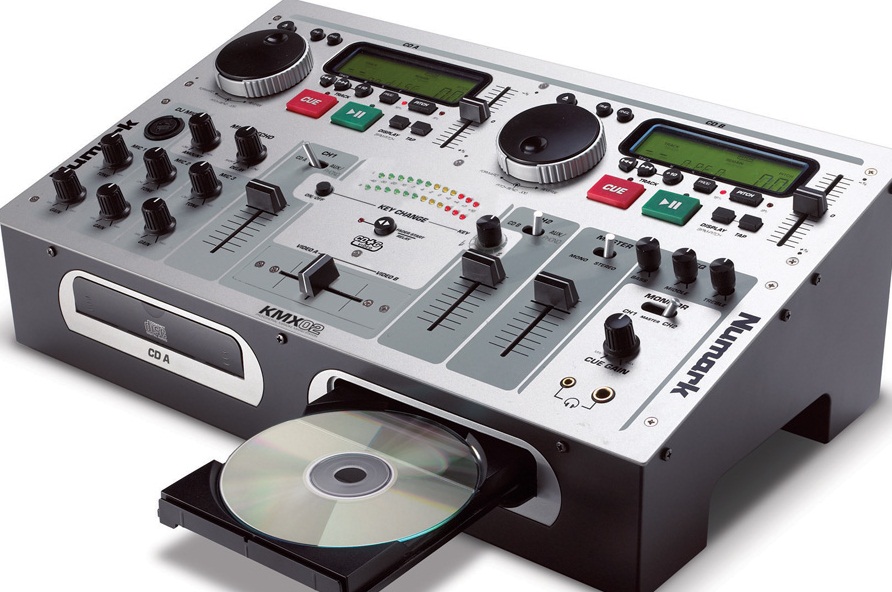

Numark KMX02 (Numark KMX-02)
THE ULTIMATE KARAOKE MIX STATION.
The only all–inclusive system of its kind, Numark KMX02 combines a
dual-deck CD+G karaoke CD player with a complete DJ mixer. KMX02 is the perfect
all–in–one solution for DJs and clubs to add karaoke to their entertainment mix.
Offering three microphone inputs with tone control, two switch–controlled
composite video outputs for graphics, echo effect, and ±8% and 16% pitch control
for beat matching, Numark KMX02 is ideal for mixing karaoke CD+G and regular audio CDs.
KMX02 features a Key Change knob so you can adjust the musical key of a
song in half steps without changing the tempo (BPM) to accommodate the vocal
range of any karaoke performer. For even more ruggedization, you can add CDMIX
CASE 3 to KMX02 for study protection in transit and at the gig.
KMX02 is the perfect karaoke performance system for DJs, clubs, and even
home.
- Dual CD player with DJ mixer
- Play CDs and CD+G discs
- Three mic inputs with tone and echo controls
- Connect turntables and other CD players with switchable phono/line-level
RCA inputs
- Key Change knob enables you to shift pitch without changing tempo
- Composite video outputs tied to the crossfader for automatic video
transitions
- Beat match with ±8 and 16% pitch control
- Single, continuous, and programmable playback
- Fader Start starts playback when you move the crossfader
GENERAL
POWER: DC12V 3.0A
DIMENSION: 445 (W) x 258 (D) x156 (H)mm
WEIGHT: 5.4 Kgs
INPUT/OUTPUT IMPEDANCE & SENSITIVITY (MASTER 0dBV OUTPUT, LOAD=100KOHM, MAXIMUM
GAIN, EQ FLAT)
AUX: 47K OHM /-14dBV (200mV) +/-2dB
PHONO: 47K OHM /-50dBV (3.16mV) +/-2dB MIC 3K OHM /-54dBV (2mV) +/-2dB
MASTER: :1K OHM MASTER XLR: 600 OHM /0dBm (815mV) +/- 2dB
PHONES: (load=32 ohm) 33 OHM /0dBV (1V) +/-3dB
FREQUENCY RESPONSE (EQ FLAT, MASTER UNBALANCED OUTPUT)
AUX: 20-20KHz +/- 2dB
PHONO: 20-20KHz +2/-3dB (RIAA)
MIC: 20-20KHz +2/-3dB
THD + N (MASTER 0dBV OUTPUT, MAXIMUM GAIN, w/ 20kHz LPF)
AUX: LESS THAN 0.05%
PHONO: LESS THAN 0.15% @ 1KHz (A-WEIGHTED)
MIC: LESS THAN 0.2% @ 1KHz (A-WEIGHTED)
NOTE: 0dBV=1V rms.
MAXIMUM OUTPUT (THD=10%, MAXIMUM GAIN, EQ FLAT)
MASTER: MORE THAN +16dBV (6.3V) at load=100K OHM
PHONES: MORE THAN +3dBV (1.4V) at LOAD=32 OHM 10
S/N RATIO (MAXIMUM GAIN, EQ FLAT, W/ 20KHz LPF, A-WEIGHTED)
AUX: MORE THAN 80dB
PHONO: MORE THAN 66dB
MIC: MORE THAN 60dB
EQ
HI: -12 +/- 2dB AT 13KHz
MID: -12 +/- 2dB AT 1KHz
LOW: -12 +/- 3dB AT 70Hz
CHANNEL AUDIO
CHANNEL BALANCE: Within 3dB
