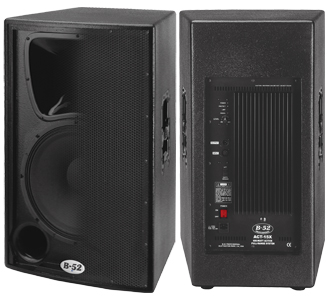

Available with painted cabinet (B-52 ACT-15X) and with carpeted cabinet & caster wheels (B-52 ACT-15)
The ACT-Series full-range
systems are apable of producing rich, clear, sound at even extreme SPLs. The ACT
amplifiers employ sophisticated circuitry including four stages of equalization,
a built-in compressor, limiter and short circuit / over-current protection.
The ACT-15(X) is a
600-watt single 15 two-way, ideal for use by itself or with an ACT-Series
subwoofer for a
powerful full-range system. Available in your choice of roadworthy black paint
or black carpet finish.
Made in the USA
13-ply Baltic birch construction
Reinforced internal bracings
Warnecke & Bohnscratch-resistant paint finish
Aeroports for lower distortion & increased output
Titanium compression driver on elliptical wave guide
Custom 15 transducers optimized for
high output & low distortion
COMPRESSOR &
EQUALIZER
The highly sophisticated compression circuitry in the ACT-15(X) allows for
impressive SPLs while minimizing the risk of damage to either the amplifier or
loudspeakers. The four-stage equalization network built-in into the amplifier is
the perfect complement to the systems loudspeaker components.
ACT-15(X)
SPECIFICATIONS
Class H Amplifier with 2-stage power supply
600 Watts @ 8 Ohms
Max System SPL: 130dB
Frequency Response:40-19K Hz
Max power requirements:
@ 120 Volts AC = 5 Amps
Max Power Requirements:
@ 230 Volts AC = 3 Amps
Rated THD: 0.03%
Built-in compressor-limiter 4-stage equalization
Amplifier S/N ratio = 100dB A-weighted
Subsonic filter: 18 dB / Octave @ 30 Hz
XLR balanced input & output
Amplifier thermal & short circuit protection
Signal sensing circuitry with LED indicators
CABINET FEATURES
Superior grade of 13-ply Baltic birch
Heavy-duty scratch resistant durable black
paint finish (ACT-15X)
Carpet finish (ACT-15 & ACT-1515)
2 3/8 diameter steel pole mount cup
16-gauge perforated steel grille for
maximum protection
Flared ports for highest available output
Dimensions (W x H x D): 19.75 x 32 x 18.5
Weight: 95 lbsss
ACT-15XF is the
model specifically designed
with built-in flying hardware
|
