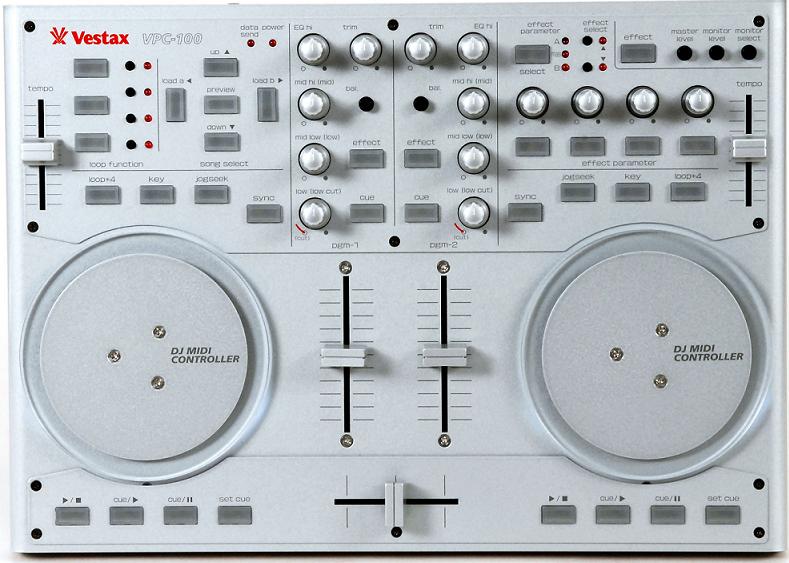

Vestax VCI100 (Vestax VCI 100)
VCI-100
MAIN FEATURES
The VCI100 is a highly professional MIDI controller that has two jog
wheels built with sensor and control technology straight from our turntables.
One of the many additional features found on the VCI-100 is a curve generator
that controls the crossfader curve giving the DJ true professional mixer
features on this MIDI controller, even if the software being used doesn't allow
for curve control. The VCI-100 is built with the highest quality mechanical
parts and state of the art PCB technology guaranteeing accurate and stable
operation.
FEATURES
90 parameters of various software are assignable to the VCI-100's control
section via USB transmitted MIDI signals.
The JOG wheel is constructed with a high-resolution pulse sensor; touch sensor
and acrylic platter mechanism. With this combination, operations such as pitch
bending, scanning and scratching can be performed with speed and accuracy.
Every crossfader motion of the VCI-100 is digitally converted and sent to the
software. Curve settings are generated with the built-in CPU, which allows you
to adjust the crossfader curve to your preference whether or not the software
you use has curve control.
The DATA SEND LED and JOG wheel SENSOR LED provides clear visual of the current
status to assist in an authentic play mode in real time.
Operates both with USB bus-power and an exclusive power adaptor. (For best
performance and stable operation, please use the power adaptor if the computer's
power capacity is low or if using a USB hub)
There are no issues if you don't have software to operate. TRAKTOR LE (Native
Instrument Inc.) is bundled to the VCI-100 with exclusive control assignment
files.
The VCI-100 provides simple plug & play working with Apple and Windows operating
system computers.
Compatible with all software that allows MIDI control assignment. Samples of
MIDI control assignment files for each software will be available at
www.vestax.com.
The metal body is almost the same size as a standard Laptop, thin but highly
durable, compact and convenient for transportation.
DIMENSIONS: 360(W) x 35(H) x 252(D) mm (Excluding knob height)
Loop/Sampler section
Lighting Square Push Sw : 3pcs
Round small Push SW + LED : 4 set
Cursor section
Lighting Square Push SW : 5pcs
Channel section (per channel)
Rotary Volume : 5pcs
Small rotary volume : 1pce
2 color Lighting Square Push SW : 1pce
Lighting Square Push SW : 1pce
60mm High quality fader : 1pce
Effect and/or Universal section
Lighting Square Push SW + Rotary Volume
Master section
Lighting Square Push SW : 1pce
Small rotary volume : 3pcs
Pitch/Tempo/Jog section (per channel)
45mm Fader volume : 1pce
2 color Lighting Square Push SW : 1pce
Lighting Square Push SW : 3pcs
Jog Wheel section (per channel)
Touch sense SW : 1pce
Touch sensitivity LED : 1pce
High resolution pulse generator dial: 1pce
Cross fader
45mm stroke variable curve generate fader : 1pce
Transport section (per channel)
2 color Lighting Square Push SW : 4pcs
Rear panel section
Touch sensitivity level volume : 2pcs
C.F.curve control volume : 1pce
Power SW (Adaptor/OFF/Buss power) 1pce
System Requirement
a) Operating System
Windows
Requires Windows XP Service Pack 2. Does not support Windows 2000/98/Me
NOTE： DO NOT connect to a Windows2000 Professional PC. The display will turn
blue and the computer will freeze.
Macintosh
Supports Mac OS X 10.4.7. Does not support previous system versions.
Multi client environments that operate the VCI-100 with multiple software, is
not supported.
b)Hardware
Windows
CPU Pentium III 500 MHz (Advanced CPU required for
laptops)
Memory: 256MB RAM
USB 2.0 Interface
These minimum system requirements are for the VCI-100
hardware. If the software's system requirements are
higher than the VCI-100, please prepare an advanced
operating system qualified.
Macintosh
CPU：Macintosh G3 600 /
G4 1.5 GHz or Dual Core 1.6 GHz 667MHz（A faster CPU is required for laptops）
Memory：256MRAM
USB 2.0 Interface
BUNDLE SOFTWARE : TRAKTOR 3 LE
2 Beat & Tempo Synchronizable Decks
Instant Loop Function
4 amazing Master FX
Integrated Beatport Store Access
Ultra-Fast Database Browsing and iTunes-Import
System Requirements
__Windows XP (SP2), Pentium III or Athlon 1 GHz, 512 MB RAM
__Mac OS 10.4, G4 1.5 GHz or Dual Core 1.6 GHz, 512 MB RAM
