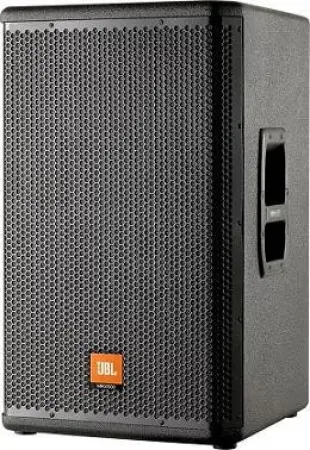

JBL MRX515

The JBL MRX515 is a high-power 15" 2-way PA speaker cab designed for music and speech reinforcement. The MRX515 offers a very high level of performance and can be placed on a pole or standard speaker tripod stand. The MRX515 features a 15" 265H Differential Drive woofer that handles 400W continuous, yet the entire system weighs only 43 lbs. For the high frequencies, the 2408H 1.5" annular polymer diaphragm, neodymium compression driver is mounted to a 70° x 70° horn. JBL's dual-angle polemount allows the speaker to be mounted in a vertical position or with a 10° down tilt for optimum audience coverage. The enclosure is constructed of quality plywood and coated in JBL's rugged DuraFlex finish. The attractive CNC-machined, 16-gauge steel grille wraps around the sides of the enclosure. The grilles are internally lined with an acoustically transparent screen to provide additional driver protection and give a very professional appearance.

JBL MRX515 15" 2-Way Loudspeaker Specifications:

• Frequency range: 52Hz-20kHz
• Frequency response: 65Hz-20kHz
• Sensitivity: 98dB @ 1m (3.3 ft)
• Nominal impedance: 8 ohms
• Power capacity: 400W/800W/1600W
• Rated maximum SPL: 130dB SPL peak
• Coverage pattern: 70° x 70° nominal
• Dimensions: 17"W x 27.25"H x 18.5"D
• Weight: 43 lbs.

JBL MRX515 15" 2-Way Loudspeaker Features:

• 15" Differential Drive woofer for high-power capacity and light weight
• 1.5" annular polymer diaphragm compression driver 70° x 70° coverage
• Dual-angle pole socket for applications requiring tripod mounting
• Heavy-duty 16-gauge protective screen backed steel grille
• Tough DuraFlex enclosure finish

  Applications:
• Reinforcement of music and speech in entertainment,
• live or prerecorded applications
• High-performance satellite speaker for use with subwoofers
