This product has been discontinued by the manufacturer. Please contact us to find a replacement.

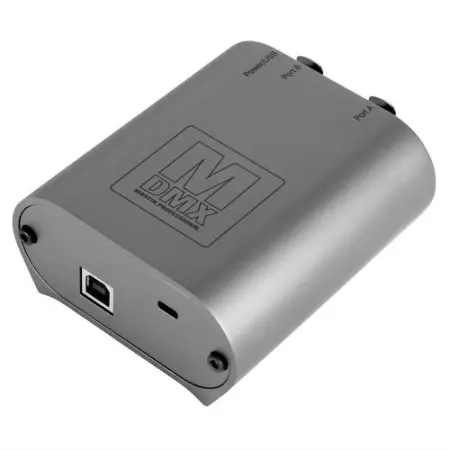

The M-DMX is the new DMX-USB Interface featuring 2 x DMX-512 Universes. The M-DMX communicates with M-PC, and all M-Series consoles including LightJockey, and ShowDesigner 6. The M-DMX allows bidirectional RDM communication, letting you change settings or addresses and access sensor data remotely on RDM compatible fixtures. As a bonus, M-DMX unlocks 2 universes for the M-PC Free Edition with no One-Key dongle required, making the M-DMX a fully-featured lighting control system.
Features:
Plug–and-play solution: comes complete with USB cable
and installation notes
2 DMX universes - configurable for in/out
DMX 512-A (RDM-compatible)
Upload of fixture software files (MU3)
Specifications:
Capacity: Up to two DMX universes
Configuration and management: Application (e.g. LightJockey™, M-PC™)
Device status: 3 x multicolor status LEDs
DMX data: 2 x 5-pin locking XLR, both configurable for DMX in/out
PC/controller: USB 2.0
K-Lock security slot
Power: 5 VDC over USB
Maximum current: 300 mA
Housing: Aluminum
IP Rating: IP20
Non-domestic use in dry location only
