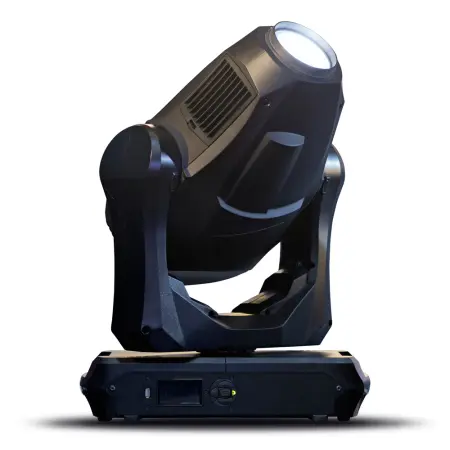

This extremely bright LED profile fixture combines top-quality white light with a fast, smooth CMY color mixing system and crisp gobo projection on surfaces as well as mid-air.

With all this and the new Animotion™ FX system that allows never-before seen beam animations, the market is now finally seeing the first real 700/800 W discharge lamp replacement in a profile fixture that effectively harnesses cutting-edge LED technology.

First real alternative to a 700/800 watt HID fixture
Flat field, crisp image, high contrast
Full feature set including CMY color mixing and 1:3 zoom

Features
First real alternative to a 700/800 watt HID fixtureFlat field, crisp image, high contrastFull feature set including CMY color mixing and 1:3 zoomVery low weight and compact designSuper high-speed movements and effectsConsistent photometric performance via latest LED technology
Tech Specs
Physical
Length:452 mm (17.8 in.)
Width (across yoke):431 mm (17.0 in.)
Height (head straight up):642 mm (25.3 in.)
Height (maximum):648 mm (25.5 in.)
Weight:23.2 kg (51.1 lbs.)
Dynamic Effects
Color mixing:CMY, independently variable 0 - 100%
Color wheel:6 color filters plus open
Rotating gobo wheel:6 interchangeable gobos plus open, wheel rotation, gobo rotation, indexing and shake
Static gobo wheel:10 gobos plus open, wheel indexing, rotation and shake
Beam effects:Rotating three-facet prism
Zoom:12° - 36° (1:3)
Focus:Motorized, with zoom-focus tracking
Iris:0 - 100%, pulse effects
Shutter effect:Electronic, with variable speed regular and random strobe
Electronic dimming:Four dimming curve options
Pan:540°
Tilt:268°
Pan and tilt speed:Adjustable via onboard control panel and DMX
Control and Programming
Control system:DMX
RDM:Implemented
Control resolution:8-bit, with 16-bit control of dimming, gobo indexing, zoom, focus, pan and tilt
DMX channels:19/27
Setting and addressing:Control panel with backlit graphic display
DMX compliance:USITT DMX512-A
RDM compliance:ANSI/ESTA E1.20
Transceiver:RS-485
Fixture software update:Direct using USB memory stick or via DMX link using Martin USB Duo™ DMX Interface Box
Optics
Light source:475 W LED engine
Minimum LED lifetime:50 000 hours (to >70% luminous output)*
*Figure obtained under manufacturer´s test conditions
Construction
Color:Black
Housing:High-impact flame-retardant thermoplastic
Protection rating:IP20
Installation
Mounting points:4 pairs of quarter-turn locks
Location:Indoor use only, must be fastened to surface or structure
Orientation:Any
Minimum distance to combustible materials:0.2 m
Minimum distance to illuminated surfaces:2.0 m
Connections
AC power input:Neutrik PowerCon
DMX and RDM data in/out:5-pin locking XLR
Electrical
AC power:120-240 V nominal, 50/60 Hz
Power supply unit:Auto-ranging electronic switch mode
Maximum total power consumption:750 W
Typical half-cycle RMS inrush current:10.3 A
Typical power consumption, all effects static, zero light output:Approx. 50 W
Maximum total power consumption: 750 W
Typical half-cycle RMS inrush current:10.3 A
Typical Power and Current
120 V, 60 Hz:4.8 A, 576 W, PF 0.999
208 V, 60 Hz:2.8 A, 568 W, PF 0.991
230 V, 50 Hz:2.5 A, 565 W, PF 0.988
240 V, 50 Hz:2.4 A, 565 W, PF 0.988
Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
Thermal
Cooling:Forced air (temperature-regulated, low noise, user-definable levels)
Maximum ambient temperature (Ta max.):40° C
Minimum ambient temperature (Ta min.):5° C
Total heat dissipation (calculated, +/- 10%):2000 BTU/hr.
Approvals
EU safety:EN 60598-2-17 (EN 60598-1), EN 62471
EU EMC:EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
US safety (pending):UL 1573
US EMC:FCC Part 15 Class A
Canadian safety (pending):CSA C22.2 No. E598-2-17 (CSA E60598-1)
Canadian EMC:ICES-003 Class A
Australia/NZ:C-TICK N4241
CE ETL C US Intertek
Included Items
Two omega brackets for rigging clamp attachment:P/N 91602001
Accessories
3 m power cable, 12 AWG, SJT, with PowerCon NAC3FCA power input connector:P/N 11541503
Neutrik PowerCon NAC3FCA power input connector, cable mount, blue:P/N 05342804
Half-coupler clamp:P/N 91602005
G-clamp:P/N 91602003
Quick trigger clamp:P/N 91602007
Safety cable, safe working load 50 kg:P/N 91604003
Flightcase for 2 x MAC Quantum™:P/N 91510210
Related Items
Martin USB Duo™ DMX Interface Box:P/N 90703010
Martin RDM 5.5 Splitter™:P/N 90758150
Ordering Information
MAC Quantum Profile™ in cardboard box:P/N 90240000
MAC Quantum Profile™ in 2-unit flightcase:P/N 90240010
