This product has been discontinued by the manufacturer. Please contact us to find a replacement.

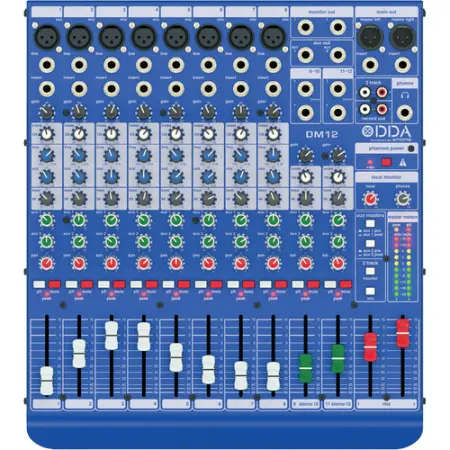

Midas DM12 - 12 Channel Analog Mixer
12 Input Analogue Live and Studio Mixer with Midas Microphone Preamplifiers
Midas DM12 Mixer Features:
Live performance and studio recording analogue mixer with 12 input channels
8 mono input channels with award-winning Midas microphone preamplifiers
2 electronically-balanced stereo line input channels on 1/4" TRS connectors
3 band EQ on mono channels with swept mid band
2 aux sends with pre/post fader switching
60 mm precision long-life faders
Rugged chassis construction for durability in portable applications
Auto-ranging universal switch-mode power supply
10-Year Warranty Program*
Designed and engineered in the U.K.
Specifications:
Input Channels
Mic inputs (MIDAS mic preamp): 8
Type: XLR, balanced
Mic EIN @ 60 dB Gain, 50 Ohms Source at Insert Send: -131 dBu, unweighted, 20 Hz to 20 kHz
Mic EIN @ 60 dB Gain, 150 Ohms Source at Insert Send: -128 dBu, unweighted, 20 Hz to 20 kHz
Noise @ 10 dB Gain, at Insert Send: -97 dBu, unweighted, 20 Hz to 20 kHz
Frequency Response (-1 dB) at Main Output: 20 Hz to 20 kHz (-1 dB)
Frequency Response (-3 dB) at Main Output: 70 kHz (-3 dB)
Mic Gain Range: +10 to +60 dB
Maximum Input Level: +11 dBu @ +10 dB gain
CMRR @ +60 dB Gain: Typically -90 dB
Impedance: 2 kOhms, Balanced
Distortion (THD+N) at 0 dBu: 0.005% @ 1 kHz
Phantom Power: Switchable, +48 V
Line Input
Type: 1/4" TRS, balanced
Impedance: 20 kOhms balanced / unbalanced
Line Gain Range: -10 to +40 dB
Maximum Input Level: +30 dBu
Stereo Input
Type 4 x 1/4" TRS connector, balanced
Impedance: 20 kOhms balanced / unbalanced
Gain Range: -20 to +20 dB
Maximum Input Level: +21 dBu
Equalizer
Low: ±15 dB @ 80 Hz, shelving
Mid (mono inputs only) ±15 dB @ 150 Hz to 3.5 kHz, variable semi-parametric
High ±15 dB @ 12 kHz, shelving
Channel Inserts
Type: 1/4" TRS connector, unbalanced
Maximum Input / Output Level: +21 dBu
AUX Sends
Type: 2 x 1/4" TRS connector, balanced
Impedance: 240 Ohms balanced, 120 Ohms unbalanced
Maximum Output Level: +21 dBu
Monitor Output
Type: 2 x 1/4" TRS connector, balanced
Impedance: 240 Ohms balanced, 120 Ohms unbalanced
Maximum Output Level: +21 dBu
Main Output
Type: 2 x XLR, electronically balanced
Impedance: 100 Ohms balanced, 50 Ohms unbalanced
Maximum Output Level: +21 dBu
Inserts
Main Out Inserts:
Type: 2 x 1/4" TRS connector, unbalanced
Maximum Input/Output Level +21 dBu
Phones/Line Out Type 1/4" TRS connector, unbalanced
Impedance: 25 Ohms
Maximum Output Level: +21 dBu
Track Format Type: 2 x RCA, unbalanced
Impedance: 20 kOhms
Maximum Input Level: +21 dBu
Record Output
Type: 2 x RCA, unbalanced
Impedance: 1 kOhm
Maximum Output Level: +21 dBu
Main Mix Main Mix @ -∞, Channel Fader @ -∞: -104 dBu, unweighted, 20 Hz to 20 kHz
Main Mix @ 0 dB, Channel Fader @ -∞: -91 dBu, unweighted, 20 Hz to 20 kHz
Main Mix @ 0 dB, Channel Fader @ 0 dB: -84 dBu, unweighted, 20 Hz to 20 kHz
Power Supply
Switch Mode Power Supply: 100 to 240V to 50/60 Hz, switchable (T 1.6 A H 250 V) Power Consumption: 40 W Mains Connection Standard IEC receptacle
Dimensions (H x W x D)
3.7 x 13 x 15" / 9.5 x 33 x 37 cm
