This product has been discontinued by the manufacturer. Please contact us to find a replacement.

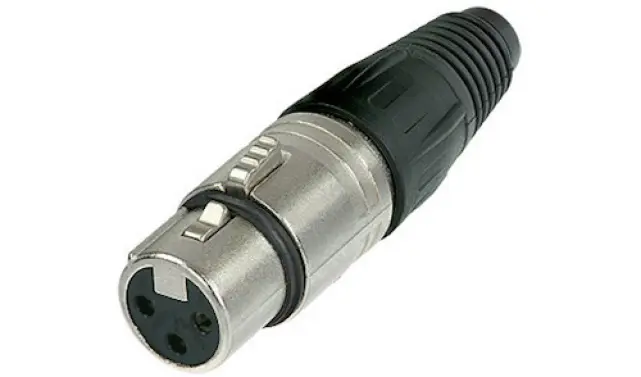

3-pin XLR-F cable connector with Nickel housing and silver contacts.
Electrical Specifications:
Number of contacts: 3
Contact resistance: = 3 m ohm
Insulation resistance, initial: > 2 G ohm
Insulation resistance, after damp heat test: > 1 G ohm
Dielectric strength: 1500 V dc
Rated current: 16 A
AWG: 2.5 mm²/14 AWG
Capacitance between contacts: = 4 pF
Mechanical Specifications:
Lifetime: >1000 cycles
Insertion / withdrawal force: = 20 N
Cable O.D. range: 3.5 mm - 8.0 mm
Material Specifications:
Shell: ZnAl4Cu1, gal Ni over Cu plating
Insert: PA 6.6 30% GR (glass reinforced)
Contacts: CuSn8
Contact surface: gal 2 µm Ag
Latch lock (female): St3K32
Strain-relief clamp: POM
Antikink bushing: PUR
Environmental Specifications:
Temperature range: -30° C to + 80° C
Flammability: UL 94HB
Solderability: complies with IEC 68-2-20
