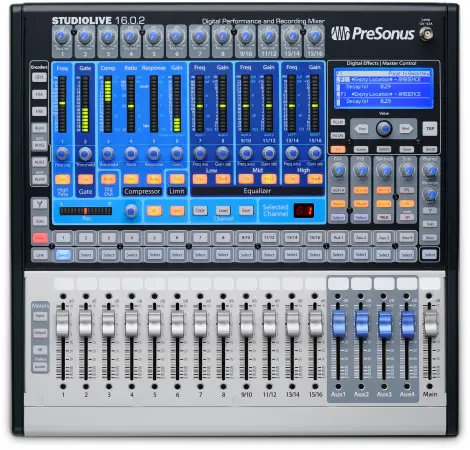

Meet the StudioLive 16.0.2!
Our first-generation StudioLive™ 24.4.2 and 16.4.2 changed the game, offering amazing performance and ease of use for a great price. So we packed the same audio quality, performance, and seamlessly integrated software (including remote control) into a smaller, even more affordable package: the StudioLive 16.0.2. True, the little fellow doesn't have the Active Integration™ muscle of the mighty StudioLive AI-series mixers but it's far more powerful than its size might lead you to believe. Furthermore, it's amazingly lightweight and offers MIDI control—unique in the StudioLive line. It's easy to love this portable powerhouse.

Features:

8 mono mic/line channel inputs, each with:
High-headroom Class A XMAX™ mic preamplifier
XLR mic and balanced ¼" line inputs
60 mm precision fader

4 stereo line channel inputs, with:
High-headroom Class A XMAX™ mic preamplifier (Ch. 9, 11, 13, and 15)
XLR mic inputs (Ch. 9, 11, 13, and 15)
Balanced ¼" line inputs (Ch. 9-16)
Unbalanced RCA line inputs (Ch. 13-16)
60 mm precision fader (4 stereo)
4 Auxiliary buses (pre/post-fader send)

2 Internal FX buses
2 stereo 32-bit digital effects processors with customizable reverb and delay presets
Fat Channel signal processing on all channels and buses, with:
3-band semi-parametric EQ (individual band on/off)
Full-featured compressor
Standard downward expander
Limiter
Phase reverse (12 mic preamplifiers only)
Pan with dedicated 15-LED display
Stereo link for input channels and aux buses
High-pass filter

One 31-band stereo graphic EQ (on main outputs only)
16-in/16-out FireWire recording interface (24-bit/44.1 kHz and 48 kHz)
Compatible with most audio software via ASIO, Windows Audio, Core Audio

Scene store and recall
Settings can be copied among channels and buses and saved as user presets.
Software bundle for Mac® and Windows® includes:
PreSonus Studio One® Artist digital audio workstation
PreSonus Capture™ live-recording software
PreSonus Universal Control with Virtual StudioLive™ bidirectional mixer-control software
Free downloadable software from the Apple App Store provides wireless remote control, including:
PreSonus StudioLive Remote for iPad®
PreSonus QMix™ for iPhone® and iPod touch®

Lockout mode protects your settings from meddlers and accidents
MIDI Control Mode provides control over:
Scene and FX Preset recall
Main Volume, FXA, and FXB output levels
FXA and FXB assign/unassign to Mains

Computer system requirements:
Below are the minimum computer-system requirements for Virtual StudioLive.
Windows
Windows® Vista x64/x86 SP2, Windows 7 x64/x86 SP1, Windows 8 x64/x86
Intel® Core™ Duo or AMD Athlon™ X2 processor (Intel Core 2 Duo or AMD Athlon X4 or better recommended)
2 GB RAM (4 GB or more recommended)
Mac
Mac® OS X 10.6.8 or later
Intel Core Duo processor (Intel Core 2 Duo or Core i3 or better recommended)
2 GB RAM (4 GB or more recommended)
Windows and Mac Systems
PreSonus Universal Control 1.5.3 or later
IEEE 1394 FireWire 400 Port
Internet connection recommended
DVD-ROM drive
Internal or external 7200 RPM storage drive highly recommended
Monitor with 1024x768 resolution

Microphone Preamp
Type XLR Female, Balanced
Frequency Response to Direct Output (at unity gain) 20 Hz-40 kHz, 0 / -0.5 dBu
Frequency Response to Main Output (at unity gain) 20 Hz-20 kHz, ±0.5 dBu
Input Impedance (Balanced) 1 kΩ
THD to Direct Output (1 kHz at unity gain) <0.005%, +4 dBu, 20 Hz–20 kHz, unity gain, unwtd
THD to Main Output (1 kHz at unity gain) 0.005%, +4 dBu, 20 Hz-20 kHz, unity gain, unwtd
EIN to Direct Output +125 dB unwtd, +130 dB A-wtd
S/N Ratio to Direct Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd) -97 dB
S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd) -94 dB
Common Mode Rejection Ratio (1 kHz at unity gain) +65 dB
Gain Control Range (± 1 dB) -16 dB to +67 dB
Maximum Input Level (unity gain) +16 dBu
Phantom Power (± 2 VDC) +48 VDC
Line Inputs, Balanced
Type ¼" TRS Female, balanced mono
Frequency Response to Direct Outputs (at unity gain) 10 Hz-40 kHz, 0 / -0.5 dBu
Frequency Response to Main Outputs (at unity gain) 20 Hz-20 kHz, 0/-0.5 dBu
Input Impedance 10 kΩ
THD to Direct Output (1 kHz at unity gain) <0.0007%, +4 dBu, 20 Hz-20 kHz, unity gain, unwtd
THD to Main Output (1 kHz at unity gain) <0.005%, +4 dBu, 20 Hz-20 kHz, unity gain, unwtd
S/N Ratio to Direct Output (Ref = +4 dBu, 20 kHz BW, unity gain, A-wtd) -105 dB
S/N Ratio to Main Output (Ref = +4 dBu, 20 kHz BW, unity gain, A-wtd) -94 dB
Gain Control Range (± 1 dB) -20 dB to +20 dB
Maximum Input level (unity gain) +22 dBu
Line Inputs, Unbalanced
Type RCA Female, unbalanced (stereo pair)
Maximum Input Level +22 dBu
Main Outputs
Type XLR Male, balanced (stereo pair); ¼” TRS Female, balanced (stereo pair)
Rated Output Level +24 dBu
Output Impedance 100Ω
Aux Outputs
Type ¼” TRS Female, balanced (mono)
Rated Output Level +18 dBu
Output Impedance 100Ω
Monitor Outputs
Type ¼” TRS Female, balanced (stereo pair)
Rated Output Level z +18 dBu
Output Impedance 100Ω
System Crosstalk
Input to Output (Ref = +4 dBu, 20 Hz-20 kHz, unwtd) -90 dBu
Adjacent Channels (Ref = +4 dBu, 20 Hz-20 kHz, unwtd) -87 dBu
Noise Gate (Expander)
Threshold Range -84 dB to 0 dB
Attack Time Adaptive (0.2 - 2.5 ms)
Release Time 70 ms
Expander Attenuation Range 2:1
Compressor
Threshold Range -56 dB to 0 dB
Ratio 1:1 to 14:1
Response Time (Attack/Release 0.2 ms / 1.0s (“Tight”) to 180 ms / 1.0s (“Smooth”)
Auto Attack and Release Attack = 10 ms, Release = 150 ms
Curve Types hard and soft knee
EQ
Type 2nd-order shelving filter (Q = 0.55)
Low (Low-pass or Bandpass) 36 to 465 Hz, ±15 dB
Mid 260 Hz to 3.5 kHz, ±15 dB
High (High-pass or Bandpass) 1.4 kHz to 18 kHz, ±15 dB
Digital Audio
ADC Dynamic Range (A-wtd, 48 kHz) 118 dB
DAC Dynamic Range (A-wtd, 48 kHz) 118 dB
FireWire S400, 400 Mb/s
Internal Processing 32-bit, floating point
Sampling Rate 44.1, 48 kHz
A/D/A Bit Depth 24 bits
Reference Level for 0 dBFS +18 dBu
Clock
Jitter <20 ps rms (20 Hz - 20 kHz)
Jitter Attenuation >60 dB (1 ns in ≈ 1 ps out)
Power
Connector IEC
Input-Voltage Range 100 to 240 VAC (factory-configured for country of destination)
Power Requirements (continuous) 100W
Physical
Length 15.56 inches (397 mm)
Width 16 inches (406 mm)
Maximum Height 5.5 inches (140 mm)
Weight 20 lbs.
