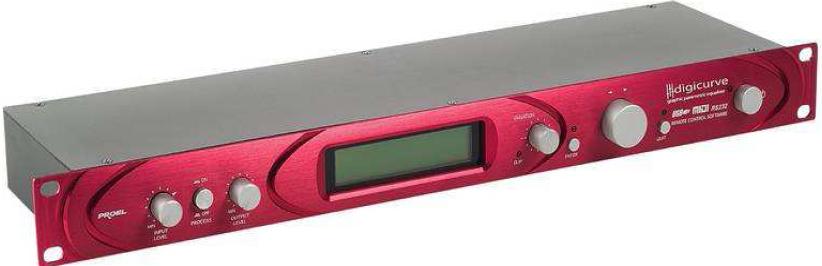

Proel Digi Curve

Proel Digicurve Graphic parametric equalizer

Dual channel Graphic/Parametric Equalizer with remote control software

Dual channel Graphic/Parametric Equalizer with remote control software (MIDI – USB – RS232). With digicurve is it possible to realize different set up, change and store the main parameters.

Datasheet

Power Supply : 9V AC
Current drain : 1 A
Outputs : 2 jack ¼” (6.3mm) unbalanced
Inputs : 2 jack ¼” (6.3mm) unbalanced
Input Levels : max 9 dBu
Output Levels : max 9 dBu
Frequency response : 20Hz-20kHz +/- 0.5dB
MIDI interface : MIDI – USB – RS232
Distortion (THD+N) : <0.01% @ -6 dBFS (Bypass)
S/N Ratio : >96 dBA (Bypass)
A/D converter resolution : 20 bit
D/A converter resolution : 20 bit
Dimensions (W x H x D) : 480 x 44 x 149 mm
Weight : 1.93 kg (4.256 lb)
Accessories : AC adapter
