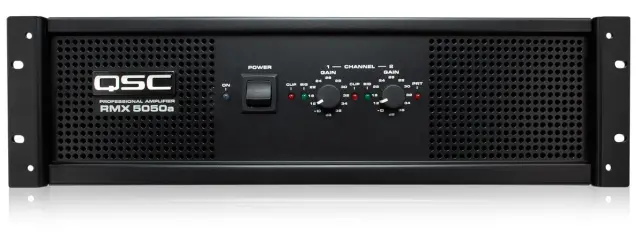

RMX 5050a
Two-Channel Power Amplifier

Features

Compact size — up to 2500 watts in two rack spaces, or 5000 watts in three rack spaces
High-current toroidal transformers, for greater 2-ohm power and low noise
Independent user-defeatable clip limiters reduce distortion
Selectable low-frequency filters (30 Hz or 50 Hz) protect speakers and increase headroom
The 4000-watt RMX4050a operates on a standard 15 amp plug (120V)
Both the RMX4050a and the RMX5050a feature a dual mono, high-current power supply for increased reliability and performance
The RMX4050a's particularly exceptional combination of cooling capacity and electrical efficiency provides robust thermal performance suitable for high continuous power in 2-ohm stereo or 4-ohm bridged applications.
Balanced 1/4” (6.3 mm) TRS, XLR, and barrier strip inputs
Touch-proof binding post and Neutrik Speakon® outputs
Front mounted gain controls for easy access
Signal and clip LED indicators for monitoring performance
Independent DC and thermal overload protection on each channel automatically protects amplifier and speakers
3-year warranty plus optional 3-year extended service contract

Model RMX 850a RMX 1450a RMX 2450a RMX 4050a RMX 5050a
Power per Channel, Stereo Mode (both channels driven)
8Ω, FTC 20 Hz–20 kHz, 0.1% tdD 185 W 260 W 450 W 800 (650**) W 1050 W
8Ω, EIA 1 kHz, 0.1% tdD 200 W 300 W 500 W 850 W 1100 W
4Ω, FTC 20 Hz–20 kHz, 0.1% tdD 280 W 400 W 650 W 1300 W 1600 W
4Ω, EIA 1 kHz, 0.1% tdD 300 W 500 W (0.5% tdD) 800 W 1400 W 1800 W
2Ω, FTC 20 Hz–20 kHz, 1% tdD – – – 1600 W 2000 W
2Ω, EIA 1 kHz, 1% tdD 430 W 700 W 1200 W 2000 W 2500 W
Power, Bridge-Mono Mode
8Ω, FTC 20 Hz–20 kHz, 0.1% tdD 530 W 800 W 1300 W 2600 W 3200 W
8Ω, EIA 1 kHz, 0.1% tdD 600 W 900 W 1500 W 2800 W 3600 W
4Ω, EIA 1 kHz, 1% tdD 830 W 1400 W 2400 W 4000 W 5000 W
Signal to Noise (20 Hz–20 kHz) -100 dB
Distortion (SMPTE-IM) < 0.01% < 0.02%
Input Sensitivity at 8Ω 1.15V (+3.4dBu) 1.23V
(+4.0 dBu) 1.42V (+5.3 dBu)
Voltage Gain 31.6x (30 dB) 40x (32 dB) 50x (34 dB) 64x (36 dB)
Output Circuitry Class AB 2-tier Class H 3-tier Class H
Current Draw (120 V AC)
Typical, 1/8 power pink noise at 4Ω*
Severe, 1/3 power pink noise at 4Ω*
4.5 A
6.6 A
6.0 A
9.6 A
6.3 A
15.6 A
10.0 A
20.1 A
13.9 A
26.9 A
AC Mains Plug
100/120V
230V NEMA 5-15
CEE7/7
NEMA 5-20
CEE7/7
Weight
Net
Shipping
35 lb (15.9 kg)
41 lb (18.6 kg)
40 lb (18.2 kg)
46 lb (20.9 kg)
44.5 lb (20.2 kg)
50.5 lb (23 kg)
68 lb (30.8 kg)
77 lb (34.9 kg)
75 lb (33.1 kg)
87 lb (37.2 kg)
Distortion (typical)
20 Hz–20 kHz, 10 dB below rated power
1 kHz and below, full rated power
< 0.03% tdD, 4Ω and 8Ω
< 0.03% tdD, 4Ω and 8Ω
< 0.02% tdD, 4Ω and 8Ω
< 0.02% tdD, 4Ω and 8Ω
Frequency Response 20 Hz–20 kHz: +0/-1 dB -3 dB points: 5 Hz and 50 kHz (LF filter bybassed, 8Ω)
Damping Factor (1 kHz and below) > 300 at 8Ω > 250 at 8Ω
Input Impedance 10 kΩ unbalanced; 20 kΩ balanced
Input Stage Clipping 10 V rms (+22 dBu) 6.4 V rms (+18 dBu)
Cooling Continuously variable speed fan, back-to-front air flow
Connectors (each channel) Input: Active balanced; 3-pin Euro-style detachable terminal block and XLR (pin 2+)
Output: Touch-proof binding posts; Neutrik Speakon®
Controls Front: AC switch; Channel 1 & 2 gain knobs
Rear: 10-position DIP switch
LED Indicators Power on: Green; Signal: Yellow (1 per channel); Clip/Protect: Red (1 per channel)
Amplifier Protection Full short circuit, open circuit, tdermal, ultrasonic, RF protection. Stable into reactive or mismatched loads
Load Protection Turn-on/off muting; AC coupling (850, 1450); Triac crowbar (1850HD, 2450, 4050HD, 5050) on each channel
Dimensions 3.5” (8.9 cm) tall; 2 rack spaces 5.25” (13.3 cm) tall; 3 rack spaces
Power Requirements 100, 120, 230 V AC (factory configured), 50–60 Hz

QSC RMX 5050A (QSC RMX-5050A)
