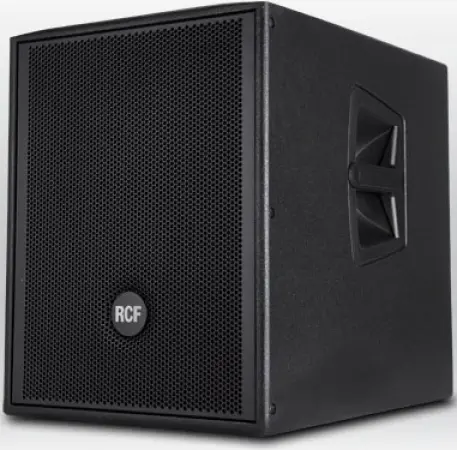

RCF ART 905-AS (RCF ART905AS)

ACTIVE SUBWOOFER

ART905-AS
Are you looking for a deep and punchy bass in a small pack?

The choice is easy: ART 905-AS.
It is an extremely compact and easy to transport high power active subwoofer, just a bit larger than the 902-AS in order to take the newly designed 15” woofer for a deeper bass punch.
The cabinet is made in Baltic Birch and heavy duty painted.

FEATURES
2000 Watt Peak, 1000 Watt RMS digital amplifier
131 dB max spl
15" woofer, high power 3" copper coil
Xover 80-120 Hz switch, phase switch
Mono / Stereo combo xlr / jack input
PFC power factor correction

ACOUSTICAL SPECIFICATIONS
Frequency Response -3 dB:40 Hz ÷ 120 Hz
Max SPL:131 dB
Woofer:15", 3" v.c.

INPUT/OUTPUT SECTION
Input signal:bal / unbal
Input connectors:Stereo combo xlr-jak
Output connectors:Stereo xlr
Input sensitivity:-2 dBu / +4 dBu
PROCESSOR SECTION
Crossover frequencies:80 - 120 Hz
Protections:Thermal, rms
Limiter:Limiter
Controls:Volume, phase, xover

AMPLIFIER SPECIFICATIONS
Total power:2000 W PEAK
   Low frequencies:2000 W PEAK
Total power:1000 W RMS
   Low frequencies:1000 W RMS
Cooling:Convection / forced
Connections:VDE connector in / out

CABINET
Cabinet Material:Balitc birch
Handles:2 on side
Pole Mount/Cap:Yes
Colour:Black

PHYSICAL SPECIFICATIONS
Height:600 / 23.62 mm/inch
Width:445 / 17.51 mm/inch
Depth:600 / 23.62 mm/inch
Net Weight:31.8 / 70.10 kg/lbs
