This product has been discontinued by the manufacturer. Please contact us to find a replacement.

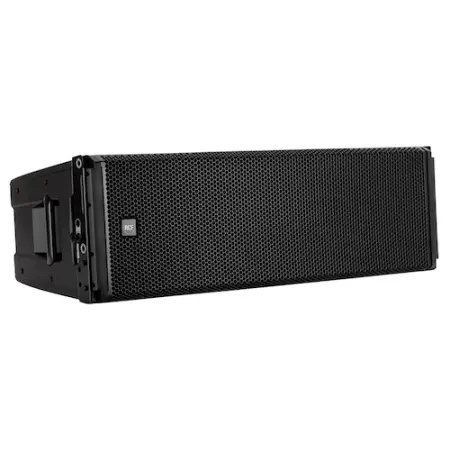

HDL 50-A
ACTIVE THREE-WAY LINE ARRAY MODULE
The HDL 50-A is a true active high power speaker system ready to use touring system for large events, indoors and outdoors. Equipped with 2x12” woofers, 4x symmetrical 6.5” midranges and two 2” drivers, it offers excellent playback quality and high sound pressure levels with a built in 2200W RMS powerful digital amplifier that delivers superior SPL, while reducing energy requirement. Using advanced neodymium magnets and a groundbreaking new housing constructed from lightweight plywood and polypropylene, it has a remarkably low weight for easy handling and flying.
Features:
4400 Watt, 3 way amplification
140 dB max SPL
8 x high power neodymium transducers
48 kHz, 32 bit DSP processing
RDNet on board
Remote monitoring and control
Symmetrical design
Extremely low weight
Specifications:
Acoustical Specifications
FREQUENCY RESPONSE:
40 Hz ÷ 20000 Hz
MAX SPL @ 1M:
140 dB
HORIZONTAL COVERAGE ANGLE:
90°
VERTICAL COVERAGE ANGLE:
10°
Transducers
COMPRESSION DRIVER:
2 x 1.4'' neo, 3.0'' v.c
MIDRANGE:
4 x 6.0'' neo, 3.0'' v.c
WOOFER:
2 x 12'' neo, 3.0'' v.c
Input/Output section
INPUT SIGNAL:
bal/unbal
INPUT CONNECTORS:
XLR, RDNet Ethercon
OUTPUT CONNECTORS:
XLR, RDNet Ethercon
INPUT SENSITIVITY:
+4 dBu
Processor section
CROSSOVER FREQUENCIES:
200 Hz - 800 Hz
PROTECTION:
Thermal, RMS
LIMITER:
Soft Limiter
CONTROLS:
Cluster size, HF correction, RDNET
Power section
TOTAL POWER:
4400 W Peak, 2200 W RMS
HIGH FREQUENCIES:
1100 W Peak, 550 W RMS
MID FREQUENCIES:
1100 W Peak, 550 W RMS
LOW FREQUENCIES:
2200 W Peak, 1100 W RMS
COOLING:
Convection
CONNECTIONS:
Powercon IN/OUT
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Baltic birch plywood
HARDWARE:
Integrated Mechanics
HANDLES:
2 side, 2 rear
GRILLE:
Steel
COLOR:
Black
Size
HEIGHT:
366 mm / 14.41 inches
WIDTH:
1171 mm / 46.1 inches
DEPTH:
502 mm / 19.76 inches
WEIGHT:
56 kg / 123.46 lbs
