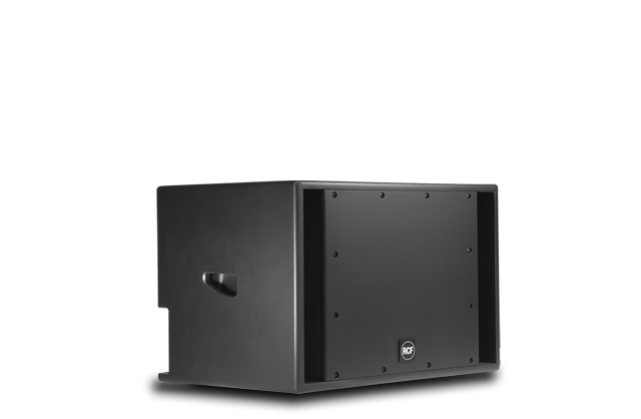

RCF S4012

The S4012 high-efficiency band pass subwoofer is the ideal bass frequency extension to complement the RCFACUSTICA Compact series two-way loudspeakers for small size installations and distributed music systems.

The low-frequency transducer is an RCF Precision high-power 12” woofer with a 3” inside/outside voice coil to minimize power compression and extend the life of the product.
This new woofer design guarantees a fast and controlled reproduction of the bass frequency range. Using bandpass loading to the transducer, the subwoofer design ensures an efficient acoustic response down to 45 Hz.
The cabinet features two Neutrik Speakon™ connectors in a recessed input plate.

FEATURES

12" high-efficiency RCF Precision 3" voice-coil woofer with Inside/Outside Coil Technology
Horn reflex loaded woofer
124 dB maximum sound pressure level
Response down to 45 Hz
Rectangular box enclosure with protective metal grille
Baltic Birch cabinet with black, heavy duty, textured epoxy paint
35 mm standard pole mount in top section of cabinet
Integrated hand carry points

ACOUSTICAL SPECIFICATIONS

Frequency Response -10 dB:45 Hz ÷ 0.2 Hz
Max SPL @ 1m:124 dB
System Sensitivity:92 dB
Nominal Impedance:8 Ω
Power Handling:400 W
Peak Power Handling:1600 W
Recommended Amplifier:800 W

TRANSDUCERS

Woofer:12" woofer, 3" coil
Nominal Impedance:8 Ω
Input Power Rating:400 W AES
Sensitivity:97 dB

INPUT SECTION

Input connector:Speakon NL4

CABINET

Cabinet Material:15 mm birch plywood construction
Handles:2 on side
Pole Mount/Cap:Yes
Grille:Custom perforated steel grille
Colour:Black, scratch resistant paint

PHYSICAL SPECIFICATIONS

Height:360 / 14.17 mm/inch
Width:500 / 19.69 mm/inch
Depth:400 / 15.75 mm/inch
Net Weight:20 / 44 kg/lbs
