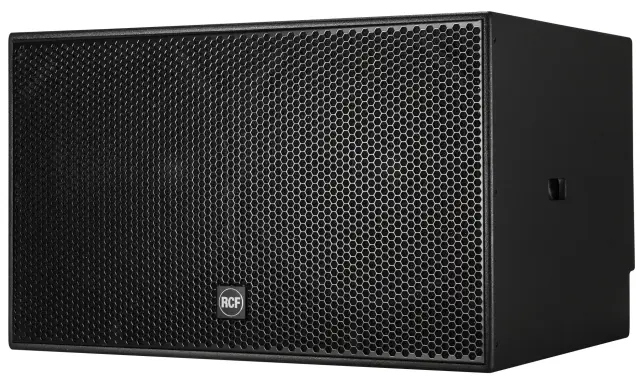

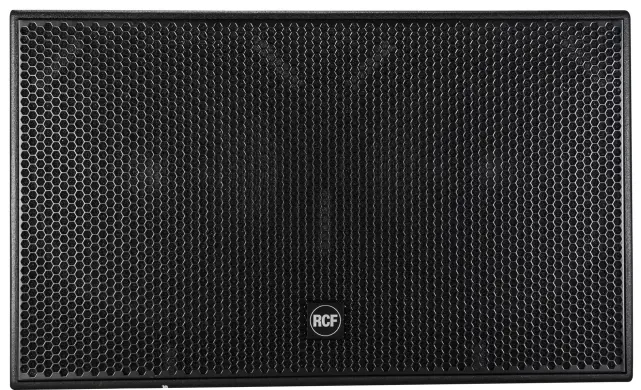

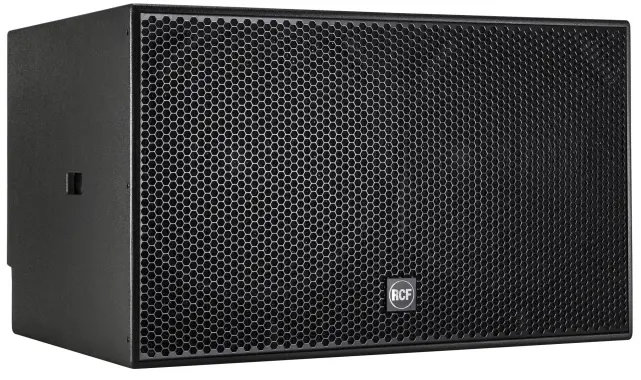

RCF S8028 MKII (RCF S 8028 MK2)

S8028 II
BASS REFLEX SUBWOOFER

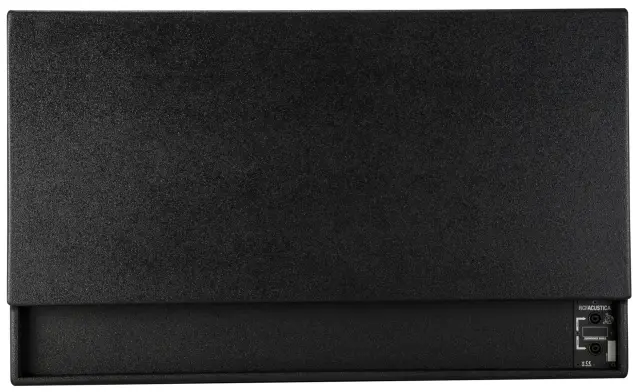

The system is equipped with two advanced, hypervented 18” RCF precision woofers mounted in a bass reflex configuration. The cabinet design is optimised to achieve tight and maximised output. Each 18” features massive vented magnets and 4” copper voice coil and represents the state of the art of RCF precision transducers technology. The system is able to produce a Max SPL of 141 dB and handles 3000 Watts AES. The cabinet features two Neutrik Speakon™ connectors in a recessed input plate. A M20 pole mount adaptor is provided on the top of the cabinet.

FEATURES
2 x 18" high-efficiency 4.0" voice-coil woofer with Inside/Outside Coil Technology
141 dB maximum sound pressure level
Response down to 30 Hz
System Power rating 3000 Watt RMS
M20 standard pole mount in top section of cabinet
Baltic Birch cabinet painted with black, heavy duty, textured epoxy
Recessed Speakon NL4 Input/Output
Protective metal grille, polyester fabric coated
ACOUSTICAL SPECIFICATIONS
Frequency Response -10 dB:30 Hz ÷ 200 Hz
Max SPL @ 1m:141 dB
System Sensitivity:101 dB
Nominal Impedance:4 Ω
Power Handling:3000 W
Peak Power Handling:12000 W
Recommended Amplifier:6000 W
Crossover frequencies:Recommended 100 Hz
TRANSDUCERS
Woofer:2 X 18" woofer, 4" voice coil
Nominal Impedance:8 Ω
Input Power Rating:3000 W AES
Sensitivity:100 dB
INPUT SECTION
Input connector:Speakon NL4
CABINET
Cabinet Material:Black epoxy coating
Handles:2 recessed
Pole Mount/Cap:Yes
Grille:Custom perforated steel grille
Colour:Black, scratch resistant paint
PHYSICAL SPECIFICATIONS
Height:630 / 24.80 mm/inch
Width:1045 / 41.14 mm/inch
Depth:770 / 30.31 mm/inch
Net Weight:80 / 176 kg/lbs
