This product has been discontinued by the manufacturer. Please contact us to find a replacement.

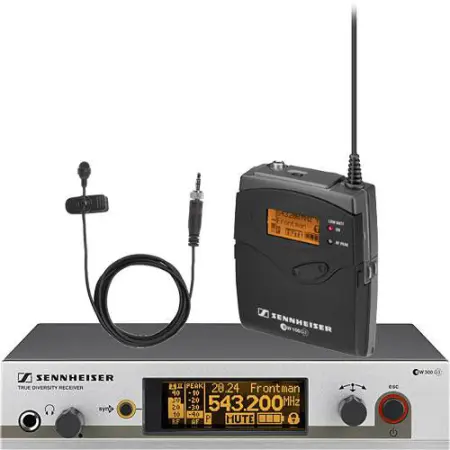

The EW 312 G3 wireless lavalier system offers communication in harmony: when the settings on the receiver are changed, the components adjust to each other automatically with one push of the front panel sync button. The bodypack transmitter is equipped with charging contacts for the optional BA2015 rechargeable battery. The inconspicuous omni-directional clip-on microphone is optimized for best reproducing the sound of the human voice and provides supreme speech intelligibility.
Features:
42 MHz bandwidth: 1680 tunable UHF frequencies for interference-freereception
Enhanced frequency bank system with up to 24 compatible frequencies
Ethernet port for connecting to the Wireless Systems Manager (WSM)software for control via computer - this delivers a good overview ofmonitoring and professional data management for multi-channel systems
High-quality true diversity reception
Pilot tone squelch for eliminating RF interference when transmitter isturned off
Automatic frequency scan feature searches for available frequencies
Enhanced AF frequency range
HDX compander for crystal-clear sound
Transmitter feature battery indicatation in 4 steps, also shown onreceiver display
Programmable Mute function
Integrated Equalizer and Soundcheck mode
Contacts for recharging BA 2015 accupack directly in the transmitter
Increased range for audio sensitivity
Wireless synchronization of transmitter parameter from receiver
User-friendly menu operation with more control options
Illuminated graphic display, receiver also shows transmitter settings
Auto-Lock function avoids accidental changing of settings
Sturdy metal housing (transmitter and receiver)
Wide range of accessories adapts the system to any requirement
Includes:
1 EM 300 G3 rack-mount receiver
1 SK 300 G3 bodypack transmitter
1 ME 2 clip-on microphone (omni-directional)
1 GA 3 rack mount
1 NT 2 power supply unit
2 antennas
2 AA batteries
Operating instructions
Specifications:
RF frequency range: 516 - 865 MHz
Transmission/receiving frequencies: 1680
Presets: 24
Switching bandwidth: 42 MHz
Peak deviation: +/- 48 kHz
Compander: HDX
Frequency response (microphone): 80 -18000 Hz
Signal-to-noise ratio: > 115 dB(A)
THD, total harmonic distortion: < 0,9 %
In compliance with: ETS 300422 , ETS 300445 , CE , FCC
Antenna connector: 2 BNC, 50 Ohm
Audio-XLR connector: 6.3 mm
Audio output level (balanced): XLR: +18 dBu max
Audio output level (unbalanced): Jack: +12 dBu max
Dimensions (Receiver): 8.35" x 7.95" x 1.69"
Weight (Receiver): 2.16 lbs
RF output power: 10/30 mW
Operating time (transmitter): > 8 h
Input voltage range: 1.8 V, line
Input voltage range: 2.4 V, line
Dimensions (Transmitter): 3.23" x 2.52" x .94"
Weight (Transmitter): approx .35 lbs
Transducer; Microphone type: elektret
AF sensitivity: 20 mV/Pa
Sound pressure level (SPL): 130 dB(SPL) max.
Pick-up pattern: omni- directional
