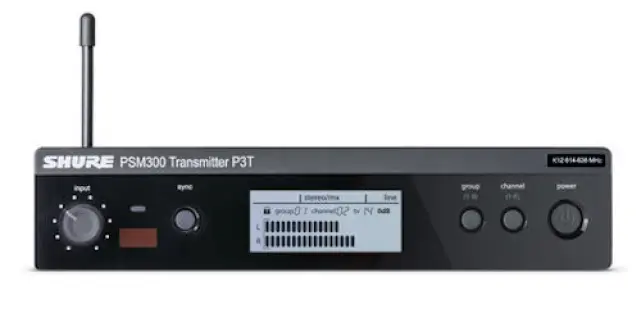

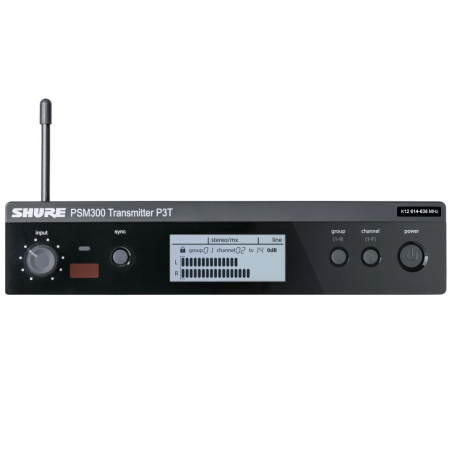

Dependable wireless transmission and 24-bit digital audio combine in the P3T Wireless Transmitter to deliver a superior personal monitoring mix for every performance. Send two channels of audio to a bodypack receiver up to 300 feet (90 m) away, with patented Audio Reference Companding to ensure transparent sound quality with no artifacts or dropouts. Setup is a snap with the one-touch IR sync that instantly links transmitter to receiver. Rear-panel ¼” TRS balanced inputs and loop outputs provide versatile connectivity to audio sources and other P3T units.

Includes
P3T Half-Rack Single-Channel Wireless Transmitter
Rackmount and hardware kits
Detachable ¼-Wave Antenna
BNC Cable
BNC Bulkhead Adapter
Power Supply
User Guide

Features:

Sends a stereo or mono mix wirelessly to performers onstage
Detailed, 24-bit digital audio
Rock-solid analog wireless connection over a 300 foot (90 meter) range
One-touch IR sync instantly links transmitter to bodypack receiver
High-contrast LCD screen with audio metering
Selectable line/aux level
¼" (6.3 mm) TRS balanced inputs and loop outputs
Detachable ¼-wave antenna
Rack hardware kit included

Specifications:

RF Carrier Range: G20: 488-512 Mhz
Compatible Freqeuncies Per Band: Up to 15
Tuning Bandwidth: 24 MHz maximum (Note: varies by region)
Operating Range: 300ft (90m)
Audio Frequency Response: 38 Hz – 15 kHz
Signal-to-Noise Ratio: 90 dB (typical)
Total Harmonic Distortion: < 0.5% (typical) (ref. +/- 34 kHz deviation @ 1 kHz)
Companding: Patented Shure Audio Reference Companding
Spurious Rejection: > 80 dB (typical)
Frequency Stability: +/- 2.5 ppm
MPX Pilot Tone: 19 kHz (+/- 1 Hz)
Modulation: FM, MPX Stereo (ref. +/- 34 kHz deviation @ 1 kHz)
Operating Temperature: 0° F to 145° F (-18° C to +63° C)
RF Output Power: 10, 20, 30 mW (Note: varies by region)
RF Output Impedance: 50 Ohms (typical)
Net Weight: 27.6oz. (783 g)
Dimensions (H x W x D): 1.7" x 7.8" x 6.8" (43 x 198 x172mm)
Power Requirements: 12 – 15 V DC, 260 mA maximum

Shure P3T (Shure P3T0G20)
