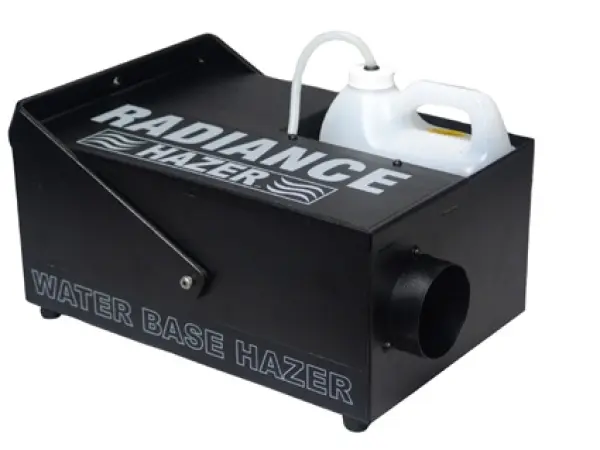

Ultratec Radiance Hazer (Ultra Tech Radiance Hazer)

Ultratec´s Radiance Haze Machine is the next major advancement in Water Based Haze Technology. Once again, Ultratec is setting new standards that all other haze machines will be measured against. Ultratec Hazer Features include: Built-In DMX that controls both the Haze Output and the Internal Fan. This combination offers excellent Haze Control and Even Dispersion. The Radiance can also be operated by an optional Remote or by utilizing the on board variable settings. Additional features include an IDC removable Power Cable and multiple use Bracket. The Ultratec Radiance Hazer uses the Luminous 7 Haze Fluid which is a proven fluid that offers the best in low consumption and great hang time. It utilizes the various sizes of the Ultratec fluid containers.

Serviceability is key; built with Ultratec´s innovative 4-Port Rapid Clean Vaporizer. It can be cleaned and returned to service in less than 15 minutes.

The Ultratec Radiance Hazer has our standard One-Year Warranty on all parts and service.

Click for more
Features

4-Port Rapid Clean Vaporizer
Built-In DMX
Variable Fan
Variable Haze Output
Stand Alone Operation
Optional Remote w/ Timer
Use 2L & 4L Jug
Enormous Output
Recommended Fluid



Output

Run Time: Continuous
Reheat Time: 8 minutes
Fluid Consumption: 6.7 cc per/ min (Full Output)
Technical Benchmark Spec.: Continuous - 400 cc/ hour.
Competitive Comparison: 10,000cfm


Ultratec Hazer Specifications

Length: 16 in 41 cm
Width: 13 in 33 cm
Height: 7 in 18 cm
Net Weight: 28 lbs 13 kgs
Power Cord: 6 ft - 1.8 m
Heater Watts: 500 Watts
Rating: 110 volt AC 50/60 hz 5 amps.
Regulatory Compliance: This product has been certified to CSA/UL Standards by QPS Canada Inc.

SAFE FOR USE ON LIVE STAGE PERFORMANCES
Our fluid has been included in the "Equipment Based Guidelines for the Use of Theatrical Smoke and Haze" that has been prepared with the support of Equity League Pension and Health Trust Funds et al., and can be used in compliance with ANSI standards for theatrical fog and the PLASA (previously ESTA) Fog Testing Program.
To view the Calibration Factors for Monitoring Theatrical Smoke, Fog and Haze please see the "Downloads" section further down this page.
Downloads

Radiance Hazer Service Manual (.pdf) (212 KB)
Radiance Hazer Operator's Manual (.pdf) (933 KB)
Radiance Hazer 3D Line Drawing (.pdf)
