This product has been discontinued by the manufacturer. Please contact us to find a replacement.

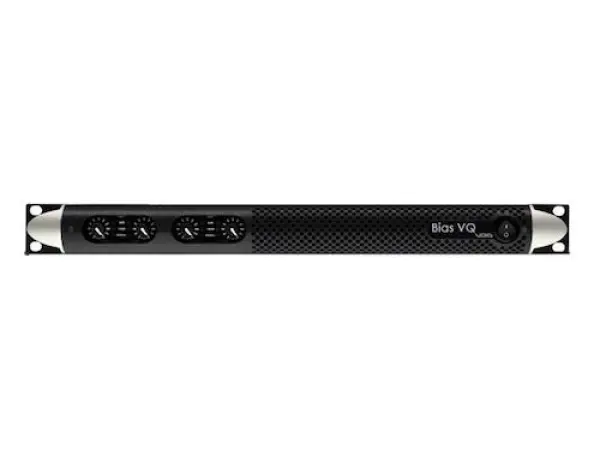

The Four channel Bias VQ DSP amplifier provides reliable premier-grade power and headroom in the smallest possible package size.
Fully digitally controlled and with a Rj45 PC communication port as standard, the Bias VQ amounts to a fully integrated, highly sophisticated yet easy to use power source including state-of-the-art sound shaping and system management capabilities.
Specifications:
Number of channels 4
Input 10KΩ Balanced/AES3
Frequency Response 20Hz-20Khz (±0.5dB)
AC Power 90-264V 50-60 Hz PFC
Output 4 x 1250W @ 4 ohms, 4 x 750W @ 8 ohms.
Dampening Factor > 5000 @ 100 Hz
S/N Ratio >110dB (20Hz - 20KHz)
Crosstalk separation > 70dB @ 1kHz
THD+N <0.5% @ 1/2 full power
IMD <0.02%
Slew rate 50V/μs
Peak output voltage 135 V
Peak output current 65 A
AD Converter Cirrus Logic CS 5381, 2 channel, 24 bit @ 48 kHz, 120 dB S/N
DA Converter Cirrus Logic CS 5381, 2 channel, 24 bit @ 48 kHz, 120 dB S/N
Internal precision Fixed Point
Crossover Butterworth, Linkwitz-Riley, Bessel: 6 dB/oct to 48 dB/oct
Height 44.45 mm
Width 483 mm
Depth 358 mm
Weight 7.4Kg (16.3 lb)
