Yorkvill YX-15 (Yorkville YX15)

YX Series

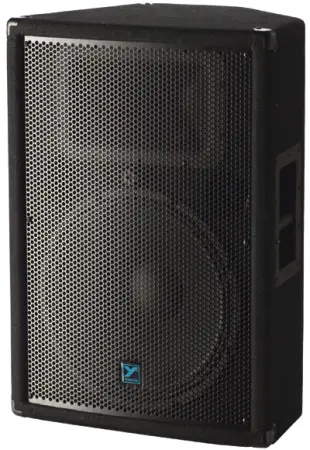

YX15 - Speaker - 300w, 15 inch / 1.4 inch

The YX15 delivers outstanding performance in a highly versatile full range loudspeaker built for applications where higher power is required. Engineered in North America, the YX15 benefits from Yorkville's forty plus years of PA enclosure design experience in the creation of this high-value general-purpose passive 15-inch and horn loudspeaker enclosure.
The YX15 cabinet uses a single 15-inch driver and an injection molded 90 x 40 degree horn with 1-inch throat and 1.4-inch Celestion neodymium compression driver. Yorkville’s tried and true dual-bulb CTL™ protection system protects the horn driver’s aluminum diaphragm ensuring unmatched reliability in the field. The YX15 is built road-ready with easy-to-clean, durable black carpet covering, solid internal plywood bracing and reinforced internal component mounts.

Designed with working musicians in mind, the YX15 offers rugged 5/8-inch plywood cabinet construction, all metal bar handles, metal input plate, integrated speaker mounts and a custom punched, perforated metal grille to protect the speaker components. A modified trapezoidal shape ensures the YX15 can function equally as well as a front-of-house or monitor speaker.


Specifications

System Type 2-Way
Active or Passive Passive
Program Power (Watts) 300
Biampable No
Nominal Impedance (Ohms) 8
Sensitivity (dB @1Watt/1m) 99
Max SPL (dB) 124
Frequency Response (Hz +/- 3db) 60 - 20k
Crossover Frequency (Hz) 1800
Driver Configuration 15 inch / 1.4 inch
HF Driver(s) 1.4 inch Aluminum (1-inch Throat)
HF Horn Injection Molded ABS
HF Dispersion (°H x °V) 90 x 40
HF Protection Dual Bulb CTL™
LF Driver(s) 15 inch Ceramic
LF Program Power(Watts) 300
Inputs - 1/4" Jacks 2
Inputs - Speakon 4-pin 2
Corners Metal
Feet Plastic Glides
Bar Handles 2 (Side)
Pole Mount Adapter (1 3/8"-3.5cm) Yes
Enclosure Materials 15mm (5/8inch) Plywood
Grille Custom Punched Black Perforated Metal
Covering / Finish Black Ozite
Dimensions (DWH xbackW, inches) 15.5 x 19.25 x 27.5 x 7.5
Dimensions (DWH xbackW, cm) 39.4 x 48.9 x 69.9 x 19
Weight (lbs/kg) 45 / 20.4
* Specifications subject to change without notice
YX Series Overview


The YX Series delivers maximum performance in the most cost effective loudspeaker line ever offered by Yorkville Sound. Engineered in North America, the YX Series benefits from Yorkville's forty plus years of PA enclosure design experience in the creation of these high performance yet cost effective general purpose loudspeaker enclosures.

The YX Series cabinets use injection molded horns with 1-inch throat and 1.4-inch Celestion neodymium compression drivers. Yorkville's tried and true dual-bulb CTL™ protection system protects the horn driver’s aluminum diaphragm ensuring unmatched reliability in the field. These cabinets are built road-ready with easy-to-clean, durable black carpet covering, solid internal plywood bracing and reinforced internal component mounts.

Designed with working musicians in mind, the YX Series offers rugged 5/8-inch plywood cabinet construction, all-metal bar handles, metal input plate, integrated speaker mounts and a custom punched, perforated metal grille to protect the speaker components. A modified trapezoidal shape (YX10, YX12, YX15 and YX15P) ensures the YX Series can function equally as well as a front-of-house or monitor speaker.

Click Here for YX Series Brochure

YX Series Characteristics

Our most cost effective loudspeaker line ever offered
Injection molded horns
Dual-bulb CTL™ protection system
Road-ready with easy-to-clean, durable black carpet covering
Rugged 5/8-inch plywood cabinet construction
All-metal bar handles
Metal input plate
Integrated speaker mounts
Custom punched, perforated metal grille to protect the speaker components
