Product Description

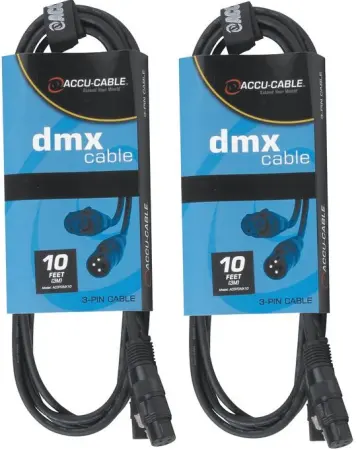

(2) American DJ 3-Pin DMX 10ft Cable (ADJ AC3PDMX10 ACCU Cable) [2 pack of cables]

Link your intelligent fixtures and controllers.

This cable features 22 AWG stranded (0.15 x 19) tinned copper conductors, polyethylene insulation, twisted pair, polyethylene inner jacket, Duofoil (100% coverage) and cotton plus a tinned copper braid shield (85% coverage). PVC jacket.

3-Pin DMX Cable Specifications:
Conductor
Number of Pairs: 1
Total Number of Conductors: 2
AWG: 22
Stranding: 0.15 x 19
Conductor Diameter: .0354"
Conduct or Material: TC-Tinned Copper
Insulation Material: PE Polyethylene
Lay Length
Lay Length: 2.5"
Direction: Left Hand Lay
Twists: 4.8 per foot
Inner Jacket
Inner Jacket Material: PE- Polyethylene
Inner Jacket Diameter: .055"
Pair Color Code: Black/White
Outer Shield
Outer Shield Trade Name: Duofoil
Outer Shield Type: Tape/Braid
Outer Shield Material
Layer 1: Material Trade Name--Duofoil, Type--Tape, Material--Aluminum Foil-Polyester, Coverage %--100
Layer 2: Material Trade Name--Duofoil, Type--Braid, Material--TC-Tinned Copper, Coverage %--85
Outer Jacket Material: PVC-Polyvinyl Chloride
Overall Nominal Diameter: .229"
Operating Temperature Range: -30 degrees C To + 75 degrees C
Bulk Cable Weight: 31 lbs./1000
Minimum Bend Radius (Install): 3.2"
Maximum Recommended Pull Tension: 72 lbs.
Nominal Characteristic Impedance: 110 Ohms
Nominal Capacitance Conductor to Conductor @ 1KHz: 12.8 pF/foot
Nominal Cap Cond. To Other Cond. & Shield @ 1KHz: 23 pF/foot
Nominal Velocity of Propagation: 66%
Nominal Delay: 1.6 nanoseconds per foot
Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 feet
Nominal Outer Shield D C Resistance @ 20 degrees C: 3.4 Ohms/ 1000 feet
Nominal Attenuation (dB/100 feet): 0.6 (@ 1 MHz) dB/100 feet
Maximum Recommended Current: 2.1 Amps per conductor @ 25 degree C
