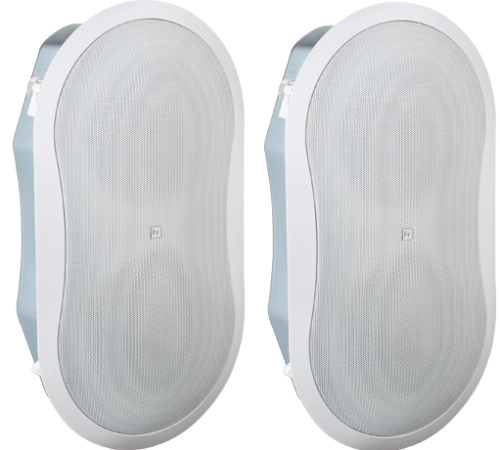

Electro-Voice EVID FM 6.2 (EV FM 6.2)

6-inch two-way flush-mount loudspeaker

Shallow profile, ideal for tight wall or ceiling spaces
Tuned passive radiator extends bass, enhances performance
High quality 1-inch titanium dome tweeter
Full-bandwidth overload protection
70 V, 100 V, and 8 ohms operation in the same model for off-the-shelf versatility
Front-panel mode/wattage selector
Fully-sealed enclosure provides superior isolation to protect adjacent rooms
Secure Phoenix-style pass-through connectors for easy wiring and installation.
Four point “quick mounting” tabs for fast attachment in any wall cavity
Can-mounted transformer for enhanced rigidity
Ribbed back can eliminates flexing

Input Connections 4-pin Phoenix
Transformer Taps (Transformer Version Only) 7.5, 15, 30, 60 w at 70 v
Frequency Response (-10 dB) 52 - 20000 Hz
Sensitivity 1 W/1 m 90 dB
Max. SPL/1m (calc) 115 dB
Coverage (Nominal -6 dB) H 120 °
Coverage (Nominal -6 dB) V 120 °
System Power Handling (Continuous/Program/Peak) 75//300 Watts
LF Transducer 6 inch with 6 inch passive radiator
LF Power Handling 6 inch, plus 6-inch passive Watts
HF Power Handling 1-inch (Titanium dome) Watts
HF Transducer 1 inch Titanium dome tweeter
Nominal Impedance (Passive) 8 Ω
Enclosure Material Zinc Plated Metal
Height 465 mm (18.31")
Width 256 mm (10.08")
Depth 100.3 mm (3.95")
Weight Net 5.8 kg (12.79 lbs)
