AKG DPT-TETRAD (AKG DPTTETRAD)

LICENCE FREE OPERATION WORLDWIDE
for Live Sound, Club Music, Conferences, Presentation, Seminars and Installations

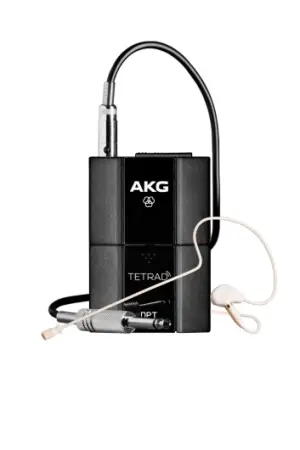

The DPTTETRAD is a professional digital wireless body-pack transmitter for worldwide, license-free operation. With 24-bit 48kHz audio coding, it provides uncompressed studio-quality transmission and a linear frequency response, perfect for demanding instrumental performances. 128-bit AES standard encryption prevents tapping of the audio signal, which makes it a perfect companion for high-security conferences.

The DPTTETRAD provides digital diversity and an out-of-range warning function to ensure a stable and drop-free signal within the entire operating area. Its input is fully adjustable between mic and line level for noise- and distortion-free signal reproduction from loud guitars or gentle microphone signals.

Belt clip upside/down

Easy setup functions designed for less experienced operators
Auto power off
Low battery warning
Adjustable input level (mic-guitar)
Integrated screw driver for gain control
5V phantom power
Recommended microphones: C 111 L, CK97 C/L, HC577 L and CK77 WR-L
TECHNICAL SPECIFICATION
Audio
Signal to Noise 120 dB-A
Pocket Transmitter
Gain Control 0 (2,2 Vrms) - 30 dB (70 mVrms) max input-level: < 3Vrms (gain = min)
Battery 1
Batterietype LR6 AA alkaline battery
Number of Batteries 2
Operating Time 6 h
Battery 2
Batterietype HR 6 AA (NiHM) rechargeable battery
Number of Batteries 2
Operating Time 7 h
Dimensions / Weight
Length 92 mm
Height 64 mm
Width 22 mm
Net Weight 70 g
