Allen & Heath AB-168(Allen and Heath AB168 Portable AudioRack)
AB168 is a portable AudioRack, providing 16 XLR inputs and 8 XLR outputs when connected to a GLD-80 or GLD-112 mixer, or to an AR2412 AudioRack.
Featuring 16 mic preamps with Phantom Power indicators and 8 XLR line outs, AB168 runs on Allen & Heath’s proprietary dSNAKE protocol.
The AB168 unit connects over a single Cat5 cable to the GLD mixer or to an AR2412 AudioRack via a secure dSNAKE EtherCon port. A second EtherCon port is provided for daisy-chaining to another AB168 box or connection of a ME personal mixing system. AB168 auto updates its firmware to synchronise with the GLD system.
The rack’s rugged design, including rubber bumpers, renders it highly roadworthy and allows it to be placed on the stage floor during performances. Weighing in at just 4.8kg and featuring a sturdy carry handle, AB168 is also designed for maximum convenience and portability. An optional rack mounting kit is also available.
16 Mic Preamps on XLR
Phantom Power LED per Input
8 XLR Line Outs
dSNAKE Connection with locking Ethercon port
Additional locking Ethercon port for daisy chaining / ME personal mixing system
Optional rack mount kit available
Add some I/O to your live rig or studio.

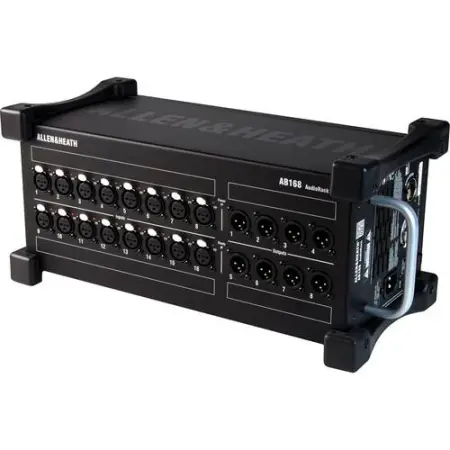

Connectors (Front Panel)
16 x XLR female, mic/line inputs
8 x XLR male, outputs

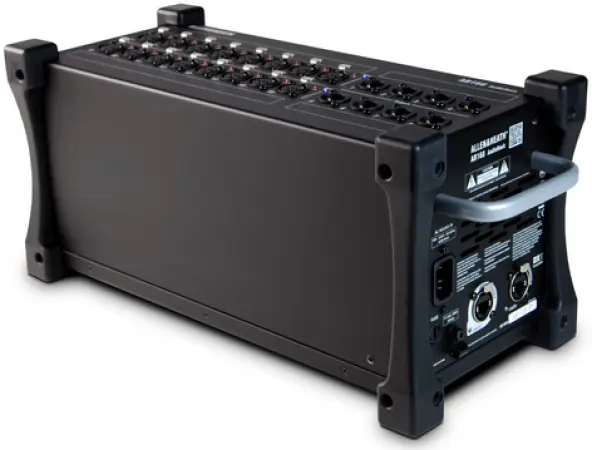

Connectors (Rear Panel)
1 x dSNAKE port for CAT5 cable link to mixer or rack
1 x Expander port for CAT5 cable link to connect additional rack
1 x IEC, VAC power input
GLD-80 mixer, GLD-112 mixer, and AR2412 AudioRack
Dimensions (W x H x D)
16.2 x 6.1 x 7.4" (41.1 x 15.4 x 18.9 cm)
10.6 lb (4.8 kg)
