HIGH PERFORMANCE 2+2 CHANNEL DJ MIXER

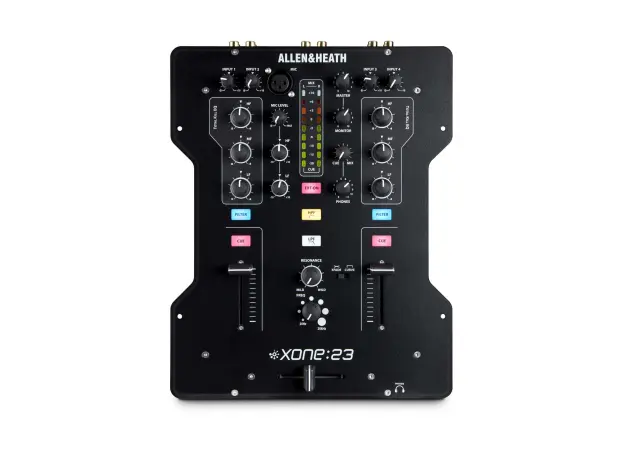

The Allen and Heath Xone 23 is a 2+2 channel mixer packed with pro features that would normally be found in the booth of a top-rated club, including an enhanced version of the legendary Xone filter with resonance control, VCA faders, 3 band total kill EQ, illuminated switches, crossfader curve selector and styling inspired by the flagship Xone:DB4.

At the heart of the mixer is the renowned analogue Voltage Control Filter (VCF) system offering Low-Pass and High-Pass filters, frequency sweep and ‘mild to wild’ resonance control. There is also an FX loop to connect to third party FX units, which route back in through the filter system.

The 2 stereo channels feature independent level controls for each input enabling up to four stereo sources to be simultaneously routed to the mix, as well as the dedicated send and return system for external FX.

The main mix output and mic input are on professional standard balanced XLR’s, and there is a dedicated record output. The Allen and Heath Xone 23 is equipped with comprehensive monitoring facilities, including a booth output with its own volume control, a cue mix control, and signal levels clearly displayed on the 9 segment peak hold meters.

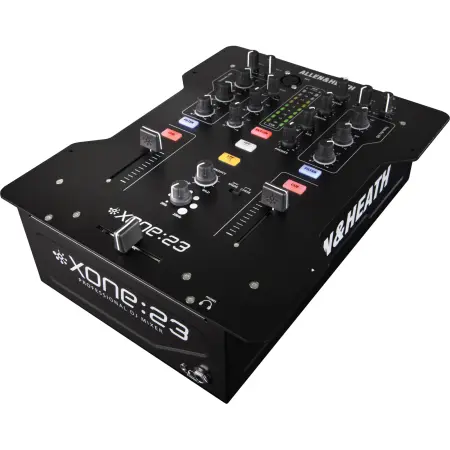

Styled on the Allen and Heath Xone 23 includes soft touch, backlit controls, light-piped meters and a distinctive new shaped steel faceplate. This Xone 2+2 channel mixer can also be upgraded with the latest Innofader for enhanced scratch performance, available as an accessory.

Allen and Heath Xone 23 Features:

2+2 channels with dual phono/line inputs
VCF Filter system – low-pass + high-pass filters plus frequency and resonance controls
3-band true total kill EQ
External FX loop
Mic input on balanced XLR, with 2-band EQ
Balanced main mix out on XLR
Independent booth out
Record out
3.5mm and 1/4? headphone outputs
Touring grade build quality
Super smooth VCA channel faders
User changeable crossfader
Innofader compatible
Crossfader curve switch
20dB pro standard headroom
Ultra low distortion
2mm Steel face plate
9-segment signal level monitoring

Allen and Heath Xone 23 Specifications:

Input

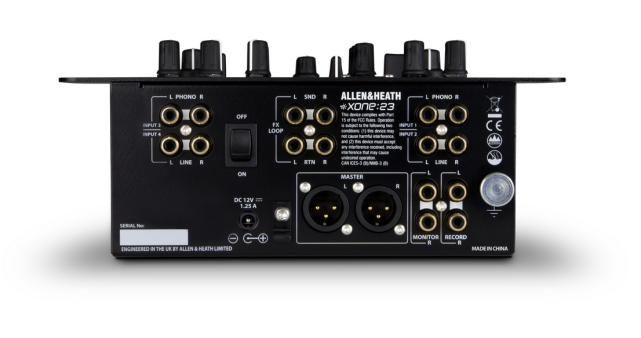

Phono: 4x RCA (2 pair)
Line: 4x RCA (2 pair)
FX Return: 2x RCA (pair)
Mic: XLR-3M

Output
Main Mix: 2x balanced XLR-3M (pair)
Monitor: 2x RCA (2 pair)
Record: 2x RCA (pair)
FX Send: 2x RCA (pair)
Headphones: stereo 3.5 mm and 1/4" TRS jacks

Impedance
Input
Phono: 47 K/330pF
Line: 20 k?
FX Return: 10 k?
Mic: <2 k?

Output
Main Mix: 100 ?
Monitor: 100 ?
Record: 100 ?
FX Send: 100 ?
Headphones: 1 ?

Nominal Level
Input
Phono: 7 to 100 mV
Line: -10 to +20 dBu
FX Return: 0 to +20 dBu
Mic: -42 to -12 dBu

Output
Main Mix: +4 dBu
Monitor: -2 dBu
Record: -2 dBu
FX Send: -2 dBu
Distortion: +10 dBu
Noise: unity

Maximum Level
Output
Main Mix: +28 dBu
Monitor: +22 dBu
Record: +19 dBu
FX Send: +19 dBu
Headphones: 200 mW RMS into 30 ?
Fader shut off: > -80 dB
Xfade shut off: > -80 dB

Distortion 0.01% THD +N

Noise Main Mix Out (22 to 22,000 Hz): -85 dBu un-weighted

General
Frequency Response
10 to 50,000 Hz ± 0 dB

Dimensions (W x D x H) 9.4 x 12.4 x 4.2" (240 x 315 x 106 mm)

Weight 6.0 lb (2.7 kg)

Package Weight 10.9 lb

Box Dimensions (LxWxH) 18.2 x 13.1 x 7.7"

Allen & Heath Xone 23 (Allen and Heath Xone23)
