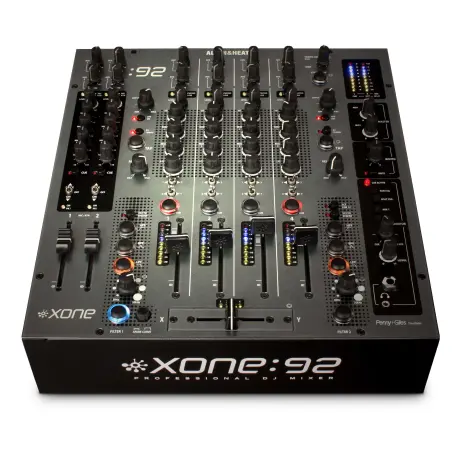

The industry-standard Allen and Heath Xone 92 is a versatile 6-channel analog mixer, renowned for its expansive, involving sound. With its solid construction and easy to use interface, the 92 is on the riders of most of the world’s top DJs and is a permanent fixture in the booth at many of the biggest superclubs.
The Allen and Heath Xone 92 was one of the first professional DJ mixers to incorporate MIDI for control of DJ software or external devices, and the first to include the innovative dual VCF filters. With its two stereo FX sends, twin Mic/returns, and one of the best EQ sections around, this mixer is a DJ’s dream tool. Purchase this 6-channel analog mixer today.
Allen and Heath Xone 92 Features:
6 dual stereo channels – 4 phono/line, 2 mono/mic or stereo return
2 independent stereo mix outputs
2 aux sends for output to external FX units
VCF system – 2 independent stereo filters with frequency and resonance controls
2 independent LFO’s for filter manipulation
4-band EQ – total kill on HF and LF, wide Q for cut, narrow Q for boost
Booth output – dedicated output on TRS jack
MIDI values can be output from 6 controls (e.g. crossfader, LFO)
P&G easy change professional VCA crossfader
Illuminated lightpipes showing status of performance controls
Intelligent cue for pre or post EQ monitoring
Monitor section includes post EQ switch, split cue and mix to cue balance
2 headphone outputs (1/4” and 3.5mm)
Ducking control on mono/mic channel
Allen and Heath Xone 92 Specifications:

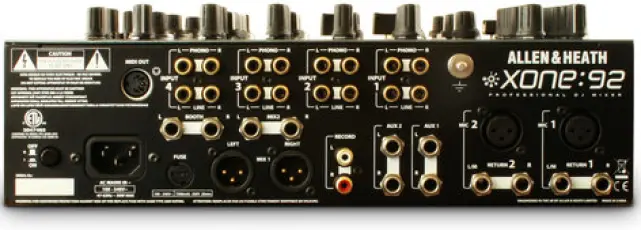

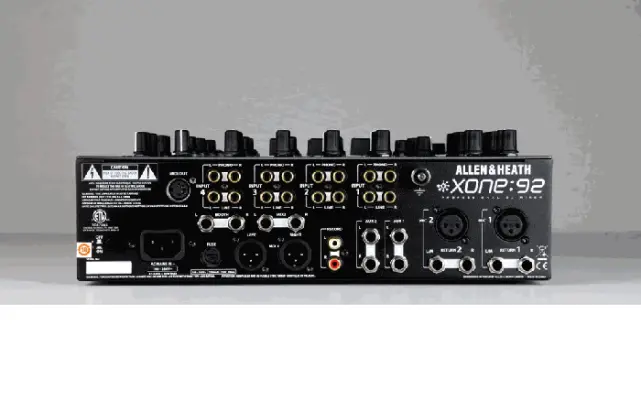

Input Connectors
Turntable: Stereo RCA Phono x4
Line: Stereo RCA Phono x4
Line: Stereo 1/4" Phone x2
Microphone: Balanced XLR Female x2
Output Connectors
Mix Out 1: Stereo Balanced XLR Male
Mix Out 2: Stereo 1/4" Phone
Aux Out: Stereo 1/4" Phone x2
>Booth Out: Stereo 1/4" Phone
Headphone: Stereo 1/4" Phone
Signal to Noise Ratio
Residual Noise:
XLR -90dBu (-94dB S/N)
TRS -84dBu (-84dB S/N)
RCA -92dBu (-84dB S/N)
Mix Noise:
XLR -86dBu (-90dB S/N)
TRS -83dBu (-83dB S/N)
RCA -91dBu (-83dB S/N)
Frequency Response
+0/-dB 20Hz to 40kHz
EQ Section
Four-Band +6/-26dB
100, 250, 2.5k, 10kHz
Power
100 to 240VAC @ 50/60Hz
300W max
Mains Fuse Rating: 100-240VAC T500mA 20mm
Dimensions (WxHxD) 12.6 x 3.5 x 14" (320 x 87.6 x 358mm)
Weight 13 lbs (6 kg)
Package Weight 21 lbs
Allen & Heath Xone 92 fader
(Allen and Heath Xone92)
